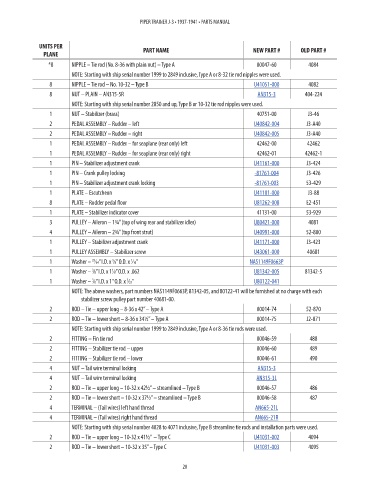

Page 28 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
*8 NIPPLE – Tie rod (No. 8-36 with plain nut) – Type A 00047-60 4084 NM!
NOTE: Starting with ship serial number 1999 to 2849 inclusive, Type A or 8-32 tie rod nipples were used.
8 NIPPLE – Tie rod – No. 10-32 – Type B U41051-000 4082 30.51

8 NUT – PLAIN – AN315-5R AN315-3 404-224 0.26
NOTE: Starting with ship serial number 2850 and up, Type B or 10-32 tie rod nipples were used.
1 NUT – Stabilizer (brass) 40751-00 J3-46 NM!
2 PEDAL ASSEMBLY – Rudder – left U40842-004 J3-A40 158.36
2 PEDAL ASSEMBLY – Rudder – right U40842-005 J3-A40 169.41
1 PEDAL ASSEMBLY – Rudder – for seaplane (rear only) left 42462-00 42462 NM!
1 PEDAL ASSEMBLY – Rudder – for seaplane (rear only) right 42462-01 42462-1 NM!
1 PIN – Stabilizer adjustment crank U41161-000 J3-424 37
1 PIN – Crank pulley locking -81761-004 J3-426 12.4
1 PIN – Stabilizer adjustment crank locking -81761-003 53-429 20.19
1 PLATE – Escutcheon U41101-000 J3-88 35.56
8 PLATE – Rudder pedal floor U81262-008 E2-451 12.3
1 PLATE – Stabilizer indicator cover 41131-00 53-929 NM!
3 PULLEY – Aileron – 1¾” (top of wing rear and stabilizer idler) U80421-000 4081 12.37
4 PULLEY – Aileron – 2¾” (top front strut) U40991-000 52-800 18.31
1 PULLEY – Stabilizer adjustment crank U41171-000 J3-423 77.13
1 PULLEY ASSEMBLY – Stabilizer screw U43061-000 40681 120.37
1 Washer – ⁄64” I.D. x ⁄8” O.D. x ⁄16” NAS1149F0663P 0.11
1
5
25
1 Washer – ⁄8” I.D. x 1 ⁄8” O.D. x .062 U81342-005 81342-5 9.3
3
1
1 Washer – ⁄8” I.D. x 1” O.D. x ⁄32” U80122-041 13.35
3
3
NOTE: The above washers, part numbers NAS1149F0663P, 81342-05, and 80122-41 will be furnished at no charge with each
stabilizer screw pulley part number 40681-00.
2 ROD – Tie – upper long – 8-36 x 42” – Type A 00014-74 52-870 NM!
2 ROD – Tie – lower short – 8-36 x 34½” – Type A 00014-75 J2-871 NM!
NOTE: Starting with ship serial number 1999 to 2849 inclusive, Type A or 8-36 tie rods were used.
2 FITTING – Fin tie rod 00046-59 488 NM!
2 FITTING – Stabilizer tie rod – upper 00046-60 489 NM!
2 FITTING – Stabilizer tie rod – lower 00046-61 490 NM!
4 NUT – Tail wire terminal locking AN315-3 0.26
4 NUT – Tail wire terminal locking AN315-3L 0.42
2 ROD – Tie – upper long – 10-32 x 42½” – streamlined – Type B 00046-57 486 NM!
2 ROD – Tie – lower short – 10-32 x 37½” – streamlined – Type B 00046-58 487 NM!
4 TERMINAL – (Tail wires) left hand thread AN665-21L 17.64
4 TERMINAL – (Tail wires) right hand thread AN665-21R 14.86
NOTE: Starting with ship serial number 4028 to 4071 inclusive, Type B streamline tie rods and installation parts were used.
2 ROD – Tie – upper long – 10-32 x 41½” – Type C U41031-002 4094 42.41
2 ROD – Tie – lower short – 10-32 x 35” – Type C U41031-003 4095 37.31

20
