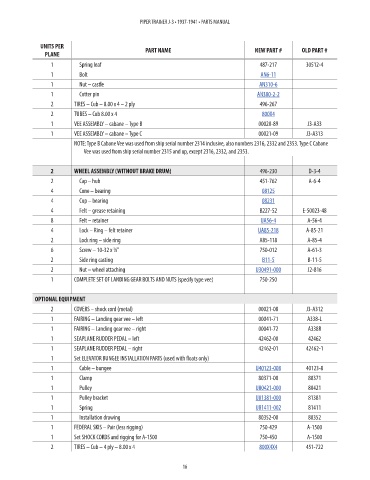

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 Spring leaf 487-217 30512-4 NM!
1 Bolt AN6-11 1.9
1 Nut – castle AN310-6 1.8

1 Cotter pin AN380-2-2 0.04
2 TIRES – Cub – 8.00 x 4 – 2 ply 496-267 NM!
2 TUBES – Cub 8.00 x 4 800X4 272.42
1 VEE ASSEMBLY – cabane – Type B 00020-89 J3-A33 NM!
1 VEE ASSEMBLY – cabane – Type C 00021-09 J3-A313 NM!
NOTE: Type B Cabane Vee was used from ship serial number 2314 inclusive, also numbers 2316, 2332 and 2353. Type C Cabane
Vee was used from ship serial number 2315 and up, except 2316, 2332, and 2353.

2 WHEEL ASSEMBLY (WITHOUT BRAKE DRUM) 496-230 D-3-4 NM!
2 Cap – hub 451-762 A-6-4 NM!
4 Cone – bearing 08125 49.98
4 Cup – bearing 08231 31.18

4 Felt – grease retaining B227-52 E-50023-48 NM!
8 Felt – retainer UA56-4 A-56-4 9.23
4 Lock – Ring – felt retainer UA85-218 A-85-21 33.02
2 Lock ring – side ring A85-118 A-85-4 NM!
6 Screw – 10-32 x ⁄8” 750-012 A-61-3 NM!
3
2 Side ring casting B11-5 B-11-5 60.23
2 Nut – wheel attaching U30491-000 J2-816 77.13
1 COMPLETE SET OF LANDING GEAR BOLTS AND NUTS (specify type vee) 750-250 NM!

OPTIONAL EQUIPMENT
2 COVERS – shock cord (metal) 00021-08 J3-A312 NM!
1 FAIRING – Landing gear vee – left 00041-71 A338-L NM!
1 FAIRING – Landing gear vee – right 00041-72 A338R NM!
1 SEAPLANE RUDDER PEDAL – left 42462-00 42462 NM!
1 SEAPLANE RUDDER PEDAL – right 42462-01 42462-1 NM!
1 Set ELEVATOR BUNGEE INSTALLATION PARTS (used with floats only) x
1 Cable – bungee U40123-008 40123-8 47.16
1 Clamp 80371-00 80371 NM!
1 Pulley U80421-000 80421 12.37
1 Pulley bracket U81381-000 81381 79.4
1 Spring U81411-002 81411 40.44
1 Installation drawing 80352-00 80352 NM!
1 FEDERAL SKIS – Pair (less rigging) 750-429 A-1500 NM!
1 Set SHOCK CORDS and rigging for A-1500 750-450 A-1500 NM!
2 TIRES – Cub – 4 ply – 8.00 x 4 800X4X4 451-722 593.12
