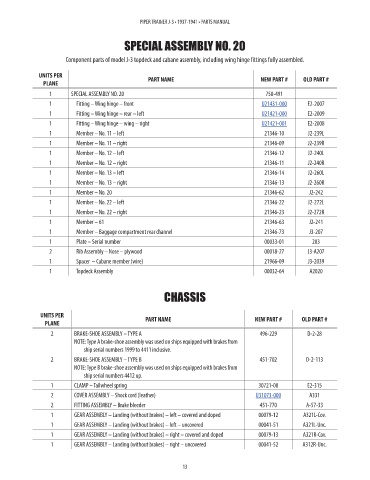

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

SPECIAL ASSEMBLY NO. 20

Component parts of model J-3 topdeck and cabane assembly, including wing hinge fittings fully assembled.

UNITS PER
PLANE PART NAME NEW PART # OLD PART # PRICE
1 SPECIAL ASSEMBLY NO. 20 750-491 NM!
1 Fitting – Wing hinge – front U21431-000 E2-2007 85.37

1 Fitting – Wing hinge – rear – left U21421-000 E2-2009 48.48
1 Fitting – Wing hinge – wing – right U21421-001 E2-2008 48.48
1 Member – No. 11 – left 21346-10 J2-239L NM!
1 Member – No. 11 – right 21346-09 J2-239R NM!
1 Member – No. 12 – left 21346-12 J2-240L NM!
1 Member – No. 12 – right 21346-11 J2-240R NM!
1 Member – No. 13 – left 21346-14 J2-260L NM!
1 Member – No. 13 – right 21346-13 J2-260R NM!
1 Member – No. 20 21346-62 J2-242 NM!
1 Member – No. 22 – left 21346-22 J2-272L NM!
1 Member – No. 22 – right 21346-23 J2-272R NM!
1 Member – 61 21346-63 J2-241 NM!
1 Member – Baggage compartment rear channel 21346-73 J3-207 NM!
1 Plate – Serial number 00033-01 203 NM!
2 Rib Assembly – Nose – plywood 00018-27 J3-A207 NM!
1 Spacer – Cabane member (wire) 21966-09 J3-2039 NM!
1 Topdeck Assembly 00032-64 A2020 NM!

CHASSIS

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 BRAKE-SHOE ASSEMBLY – TYPE A 496-229 D-2-28 NM!
NOTE: Type A brake-shoe assembly was used on ships equipped with brakes from
ship serial numbers 1999 to 4411 inclusive.
2 BRAKE-SHOE ASSEMBLY – TYPE B 451-702 D-2-113 NM!
NOTE: Type B brake-shoe assembly was used on ships equipped with brakes from
ship serial numbers 4412 up.
1 CLAMP – Tailwheel spring 30721-00 E2-315 NM!
2 COVER ASSEMBLY – Shock cord (leather) U31073-000 A331 101.43
2 FITTING ASSEMBLY – Brake bleeder 451-770 A-57-33 NM!
1 GEAR ASSEMBLY – Landing (without brakes) – left – covered and doped 00079-12 A321L-Cov. NM!
1 GEAR ASSEMBLY – Landing (without brakes) – left – uncovered 00041-51 A321L-Unc. NM!
1 GEAR ASSEMBLY – Landing (without brakes) – right – covered and doped 00079-13 A321R-Cov. NM!
1 GEAR ASSEMBLY – Landing (without brakes) – right – uncovered 00041-52 A312R-Unc. NM!

13
