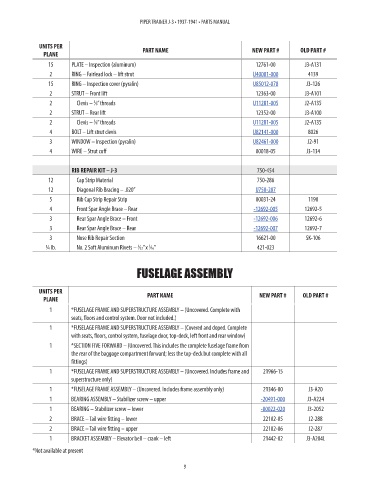

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
15 PLATE – Inspection (aluminum) 12761-00 J3-A131 NM!
2 RING – Fairlead lock – lift strut U40081-000 4139 0.49
15 RING – Inspection cover (pyralin) U85012-078 J3-126 8.99
2 STRUT – Front lift 12363-00 J3-A101 NM!
2 Clevis – ⁄8” threads U11281-005 J2-A135 294.58
3
2 STRUT – Rear lift 12352-00 J3-A100 NM!
2 Clevis – ⁄8” threads U11281-005 J2-A135 294.58
3
4 BOLT – Lift strut clevis U82141-000 8026 26.4
3 WINDOW – Inspection (pyralin) U82461-000 J2-91 18.02
4 WIRE – Strut cuff 00018-05 J3-134 NM!

RIB REPAIR KIT – J-3 750-454 NM!
12 Cap Strip Material 750-286 NM!
12 Diagonal Rib Bracing – .020” U750-287 14.5
5 Rib Cap Strip Repair Strip 00031-24 1190 NM!
4 Front Spar Angle Brace – Rear -12692-005 12692-5 10.57
3 Rear Spar Angle Brace – Front -12692-006 12692-6 11
3 Rear Spar Angle Brace – Rear -12692-007 12692-7 11.6
3 Nose Rib Repair Section 16621-00 SK-106 NM!
¼ lb. No. 2 Soft Aluminum Rivets – ⁄32” x ⁄16” 421-023 NM!
3
5
FUSELAGE ASSEMBLY

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 *FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY – (Uncovered. Complete with
seats, floors and control system. Door not included.)
1 *FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY – (Covered and doped. Complete
with seats, floors, control system, fuselage door, top-deck, left front and rear window)
1 *SECTION FIVE FORWARD – (Uncovered. This includes the complete fuselage frame from
the rear of the baggage compartment forward; less the top-deck but complete with all
fittings)
1 *FUSELAGE FRAME AND SUPERSTRUCTURE ASSEMBLY – (Uncovered. Includes frame and 21966-15 NM!
superstructure only)
1 *FUSELAGE FRAME ASSEMBLY – (Uncovered. Includes frame assembly only) 21346-00 J3-A20 NM!

1 BEARING ASSEMBLY – Stabilizer screw – upper -20491-000 J3-A224 180.33
1 BEARING – Stabilizer screw – lower -80022-020 J3-2052 12.61
2 BRACE – Tail wire fitting – lower 22102-05 J2-288 NM!
2 BRACE – Tail wire fitting – upper 22102-06 J2-287 NM!
1 BRACKET ASSEMBLY – Elevator bell – crank – left 21442-02 J3-A204L NM!
*Not available at present
