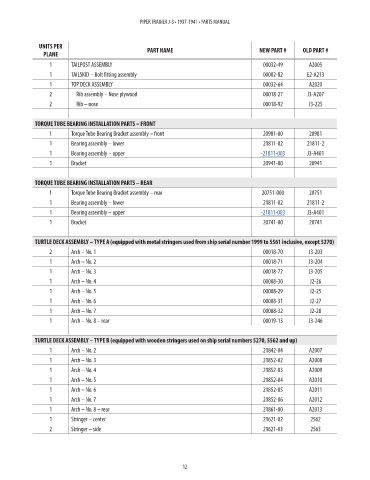

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 TAILPOST ASSEMBLY 00032-49 A2005 NM!
1 TAILSKID – Bolt fitting assembly 00002-82 E2-A213 NM!
1 TOP DECK ASSEMBLY 00032-64 A2020 NM!
2 Rib assembly – Nose plywood 00018-27 J3-A207 NM!
2 Rib – nose 00018-92 J3-225 NM!
TORQUE TUBE BEARING INSTALLATION PARTS – FRONT
1 Torque Tube Bearing Bracket assembly – front 20981-00 20981 NM!
1 Bearing assembly – lower 21811-02 21811-2 NM!
1 Bearing assembly – upper -21811-003 J3-A401 191.88
1 Bracket 20941-00 20941 NM!
TORQUE TUBE BEARING INSTALLATION PARTS – REAR
1 Torque Tube Bearing Bracket assembly – rear 20751-000 20751 NM!
1 Bearing assembly – lower 21811-02 21811-2 NM!
1 Bearing assembly – upper -21811-003 J3-A401 191.88
1 Bracket 20741-00 20741 NM!
TURTLE DECK ASSEMBLY – TYPE A (equipped with metal stringers used from ship serial number 1999 to 5561 inclusive, except 5270)
2 Arch – No. 1 00018-70 J3-203 NM!
1 Arch – No. 2 00018-71 J3-204 NM!
1 Arch – No. 3 00018-72 J3-205 NM!
1 Arch – No. 4 00008-30 J2-26 NM!
1 Arch – No. 5 00008-29 J2-25 NM!
1 Arch – No. 6 00008-31 J2-27 NM!
1 Arch – No. 7 00008-32 J2-28 NM!
1 Arch – No. 8 – rear 00019-13 J3-246 NM!
TURTLE DECK ASSEMBLY – TYPE B (equipped with wooden stringers used on ship serial numbers 5270, 5562 and up)
1 Arch – No. 2 21842-04 A2007 NM!
1 Arch – No. 3 21852-02 A2008 NM!
1 Arch – No. 4 21852-03 A2009 NM!
1 Arch – No. 5 21852-04 A2010 NM!
1 Arch – No. 6 21852-05 A2011 NM!
1 Arch – No. 7 21852-06 A2012 NM!
1 Arch – No. 8 – rear 21861-00 A2013 NM!
1 Stringer – center 21621-02 2562 NM!
2 Stringer – side 21621-03 2563 NM!
