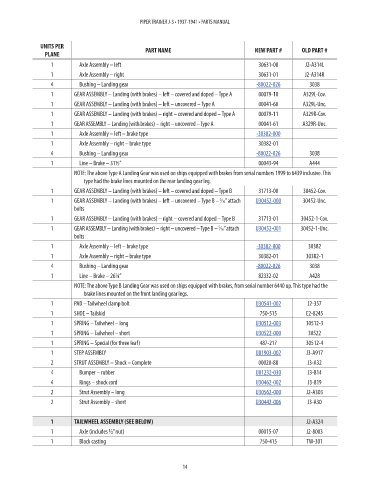

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 Axle Assembly – left 30631-00 J2-A314L NM!
1 Axle Assembly – right 30631-01 J2-A314R NM!
4 Bushing – Landing gear -80022-026 3038 15.44

1 GEAR ASSEMBLY – Landing (with brakes) – left – covered and doped – Type A 00079-10 A329L-Cov. NM!
1 GEAR ASSEMBLY – Landing (with brakes) – left – uncovered – Type A 00041-60 A329L-Unc. NM!
1 GEAR ASSEMBLY – Landing (with brakes) – right – covered and doped – Type A 00079-11 A329R-Cov. NM!
1 GEAR ASSEMBLY – Landing (with brakes) – right – uncovered – Type A 00041-61 A329R-Unc. NM!
1 Axle Assembly – left – brake type -30382-000 178.91
1 Axle Assembly – right – brake type 30382-01 NM!
4 Bushing – Landing gear -80022-026 3038 15.44
1 Line – Brake – 31½” 00043-94 A444 NM!
NOTE: The above Type A Landing Gear was used on ships equipped with brakes from serial numbers 1999 to 6439 inclusive. This
type had the brake lines mounted on the rear landing gear leg.
1 GEAR ASSEMBLY – Landing (with brakes) – left – covered and doped – Type B 31713-00 30452-Cov. NM!
1 GEAR ASSEMBLY – Landing (with brakes) – left – uncovered – Type B – ⁄16” attach U30452-000 30452-Unc. 1063.44
5
bolts
1 GEAR ASSEMBLY – Landing (with brakes) – right – covered and doped – Type B 31713-01 30452-1-Cov. NM!
1 GEAR ASSEMBLY – Landing (with brakes) – right – uncovered – Type B – ⁄16” attach U30452-001 30452-1-Unc. 1063.44
5
bolts
1 Axle Assembly – left – brake type -30382-000 30382 178.91
1 Axle Assembly – right – brake type 30382-01 30382-1 NM!
4 Bushing – Landing gear -80022-026 3038 15.44
1 Line – Brake – 26¼” 82332-02 A428 NM!
NOTE: The above Type B Landing Gear was used on ships equipped with brakes, from serial number 6440 up. This type had the
brake lines mounted on the front landing gear legs.
1 PAD – Tailwheel clamp bolt U30541-002 J2-357 11.38
1 SHOE – Tailskid 750-515 E2-8245 NM!
1 SPRING – Tailwheel – long U30512-003 30512-3 63.33
1 SPRING – Tailwheel – short U30522-000 30522 51.07
1 SPRING – Special (for three leaf) 487-217 30512-4 NM!
1 STEP ASSEMBLY U81903-002 J3-A917 284.87
2 STRUT ASSEMBLY – Shock – Complete 00020-88 J3-A32 NM!
4 Bumper – rubber U81232-030 J3-814 4.3
4 Rings – shock cord U30462-002 J3-819 46.44
2 Strut Assembly – long U30562-000 J2-A303 263.31
2 Strut Assembly – short U30442-006 J3-A30 407.87

1 TAILWHEEL ASSEMBLY (SEE BELOW) J2-A324 x
1 Axle (includes ½” nut) 00015-07 J2-8003 NM!
1 Block casting 750-415 TW-301 NM!
