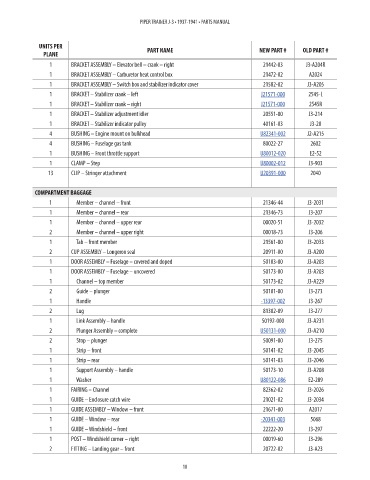

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 BRACKET ASSEMBLY – Elevator bell – crank – right 21442-03 J3-A204R NM!
1 BRACKET ASSEMBLY – Carburetor heat control box 21472-02 A2024 NM!
1 BRACKET ASSEMBLY – Switch box and stabilizer indicator cover 21582-02 J3-A205 NM!
1 BRACKET – Stabilizer crank – left J21571-000 2545-L 14.52
1 BRACKET – Stabilizer crank – right J21571-000 2545R 14.52
1 BRACKET – Stabilizer adjustment idler 20551-00 J3-214 NM!
1 BRACKET – Stabilizer indicator pulley 40161-03 J3-20 NM!
4 BUSHING – Engine mount on bulkhead U82341-002 J2-A215 30.49
4 BUSHING – Fuselage gas tank 80022-27 2602 NM!
1 BUSHING – Front throttle support U80012-020 E2-52 11.83
1 CLAMP – Step U80002-012 J3-903 22.67
13 CLIP – Stringer attachment U20391-000 2040 3.48
COMPARTMENT BAGGAGE
1 Member – channel – front 21346-44 J3-2031 NM!
1 Member – channel – rear 21346-73 J3-207 NM!
1 Member – channel – upper rear 00020-51 J3-2032 NM!
2 Member – channel – upper right 00018-73 J3-206 NM!
1 Tab – front member 21561-00 J3-2033 NM!
2 CUP ASSEMBLY – Longeron seal 20911-00 J3-A200 NM!
1 DOOR ASSEMBLY – Fuselage – covered and doped 50183-00 J3-A203 NM!
1 DOOR ASSEMBLY – Fuselage – uncovered 50173-00 J3-A203 NM!
1 Channel – top member 50173-02 J3-A229 NM!
2 Guide – plunger 50101-00 J3-273 NM!
1 Handle -13397-002 J3-267 12.53
2 Lug 81302-09 J3-277 NM!
1 Link Assembly – handle 50192-000 J3-A231 NM!
2 Plunger Assembly – complete U50131-000 J3-A210 87.38
2 Stop – plunger 50091-00 J3-275 NM!
1 Strip – front 50141-02 J3-2045 NM!
1 Strip – rear 50141-03 J3-2046 NM!
1 Support Assembly – handle 50173-10 J3-A208 NM!
1 Washer U80122-086 E2-289 2.46
1 FAIRING – Channel 82362-02 J3-2026 NM!
1 GUIDE – Enclosure catch wire 21021-02 J3-2034 NM!
1 GUIDE ASSEMBLY – Window – front 21671-00 A2017 NM!
1 GUIDE – Window – rear -20341-003 5068 56.53
1 GUIDE – Windshield – front 22222-20 J3-297 NM!
1 POST – Windshield corner – right 00019-60 J3-296 NM!
2 FITTING – Landing gear – front 20722-02 J3-A23 NM!
