Page 14 - 1937-41 Piper J-3 Trainer Parts Catalog

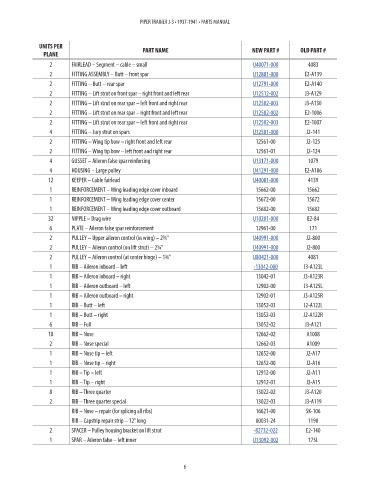

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 FAIRLEAD – Segment – cable – small U40071-000 4083 1.32
2 FITTING ASSEMBLY – Butt – front spar U12801-000 E2-A139 85.19
2 FITTING – Butt – rear spar U12791-000 E2-A140 94.14
2 FITTING – Lift strut on front spar – right front and left rear U12512-002 J3-A129 123.42
2 FITTING – Lift strut on rear spar – left front and right rear U12502-003 J3-A130 123.38
2 FITTING – Lift strut on rear spar – right front and left rear U12502-002 E2-1006 123.38
2 FITTING – Lift strut on rear spar – left front and right rear U12502-003 E2-1007 123.38
4 FITTING – Jury strut on spars U12581-000 J2-141 21.22
2 FITTING – Wing tip bow – right front and left rear 12561-00 J2-125 NM!
2 FITTING – Wing tip bow – left front and right rear 12561-01 J2-124 NM!
4 GUSSET – Aileron false spar reinforcing U13171-000 1079 31.16
4 HOUSING – Large pulley U41291-000 E2-A106 55.91
12 KEEPER – Cable fairlead U40081-000 4139 0.49
1 REINFORCEMENT – Wing leading edge cover inboard 15662-00 15662 NM!
1 REINFORCEMENT – Wing leading edge cover center 15672-00 15672 NM!
1 REINFORCEMENT – Wing leading edge cover outboard 15682-00 15682 NM!
32 NIPPLE – Drag wire U10201-000 E2-84 11.74
6 PLATE – Aileron false spar reinforcement 12961-00 171 NM!
2 PULLEY – Upper aileron control (in wing) – 2¾” U40991-000 J2-800 18.31
2 PULLEY – Aileron control (on lift strut) – 2¾” U40991-000 J2-800 18.31
2 PULLEY – Aileron control (at center hinge) – 1¾” U80421-000 4081 12.37
1 RIB – Aileron inboard – left -13042-000 J3-A123L 205.98
1 RIB – Aileron inboard – right 13042-01 J3-A123R NM!
1 RIB – Aileron outboard – left 12902-00 J3-A125L NM!
1 RIB – Aileron outboard – right 12902-01 J3-A125R NM!
1 RIB – Butt – left 13052-03 J2-A122L NM!
1 RIB – Butt – right 13052-03 J2-A122R NM!
6 RIB – Full 13052-02 J3-A121 NM!
18 RIB – Nose 12662-02 A1008 NM!
2 RIB – Nose special 12662-03 A1009 NM!
1 RIB – Nose tip – left 12652-00 J2-A17 NM!
1 RIB – Nose tip – right 12652-00 J2-A16 NM!
1 RIB – Tip – left 12912-00 J2-A11 NM!
1 RIB – Tip – right 12912-01 J2-A15 NM!
8 RIB – Three quarter 13022-02 J3-A120 NM!
2 RIB – Three quarter special 13022-03 J3-A119 NM!
RIB – Nose – repair (for splicing all ribs) 16621-00 SK-106 NM!
RIB – Capstrip repair strip – 12” long 00031-24 1190 NM!
2 SPACER – Pulley housing bracket on lift strut -82732-022 E2-140 19.87
1 SPAR – Aileron false – left inner U13092-002 175L 94.31
