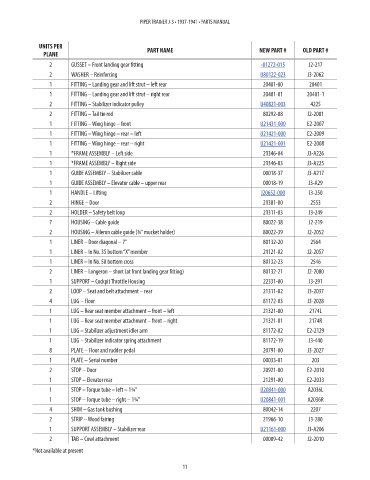

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 GUSSET – Front landing gear fitting -81272-015 J2-217 5.57
2 WASHER – Reinforcing U80122-023 J3-2062 13.47
1 FITTING – Landing gear and lift strut – left rear 20401-00 20401 NM!

1 FITTING – Landing gear and lift strut – right rear 20401-01 20401-1 NM!
2 FITTING – Stabilizer indicator pulley U40821-003 4225 12.84
2 FITTING – Tail tie rod 80292-08 J2-2001 NM!
1 FITTING – Wing hinge – front U21431-000 E2-2007 85.37
1 FITTING – Wing hinge – rear – left U21421-000 E2-2009 48.48
1 FITTING – Wing hinge – rear – right U21421-001 E2-2008 48.48
1 *FRAME ASSEMBLY – Left side 21346-04 J3-A226 NM!
1 *FRAME ASSEMBLY – Right side 21346-03 J3-A225 NM!
1 GUIDE ASSEMBLY – Stabilizer cable 00018-37 J3-A217 NM!
1 GUIDE ASSEMBLY – Elevator cable – upper rear 00018-19 J3-A29 NM!
1 HANDLE – Lifting J20652-000 J3-250 46.29
2 HINGE – Door 21381-00 2553 NM!
2 HOLDER – Safety belt loop 21311-03 J3-249 NM!
7 HOUSING – Cable guide 80022-38 J2-219 NM!
2 HOUSING – Aileron cable guide (¾” mucket holder) 80022-39 J2-2052 NM!
1 LINER – Door diagonal – 7” 80132-20 2564 NM!
1 LINER – In No. 35 bottom “X” member 21121-02 J2-2057 NM!
1 LINER – In No. 50 bottom cross 80132-23 2546 NM!
2 LINER – Longeron – short (at front landing gear fitting) 80132-21 J2-2080 NM!
1 SUPPORT – Cockpit Throttle Housing 22331-00 J3-291 NM!
2 LOOP – Seat and belt attachment – rear 21311-02 J3-2037 NM!
4 LUG – Floor 81172-03 J3-2028 NM!
1 LUG – Rear seat member attachment – front – left 21321-00 2174L NM!
1 LUG – Rear seat member attachment – front – right 21321-01 2174R NM!
1 LUG – Stabilizer adjustment idler arm 81172-02 E2-2129 NM!
1 LUG – Stabilizer indicator spring attachment 81172-19 J3-440 NM!
8 PLATE – Floor and rudder pedal 20791-00 J3-2027 NM!
1 PLATE – Serial number 00033-01 203 NM!

2 STOP – Door 20921-00 E2-2010 NM!
1 STOP – Elevator rear 21291-00 E2-2033 NM!
1 STOP – Torque tube – left – 1¾” U20841-000 A2036L 81.33
1 STOP – Torque tube – right – 1¾” U20841-001 A2036R 80.12
4 SHIM – Gas tank bushing 80042-14 2207 NM!
2 STRIP – Wood fairing 21966-10 J3-280 NM!
1 SUPPORT ASSEMBLY – Stabilizer rear U21161-000 J3-A206 238.34
2 TAB – Cowl attachment 00009-42 J2-2010 NM!
*Not available at present

11
