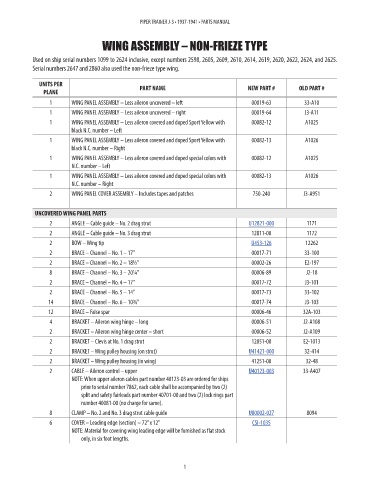

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

WING ASSEMBLY – NON-FRIEZE TYPE

Used on ship serial numbers 1099 to 2624 inclusive, except numbers 2598, 2605, 2609, 2610, 2614, 2619, 2620, 2622, 2624, and 2625.
Serial numbers 2647 and 2860 also used the non-frieze type wing.

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 WING PANEL ASSEMBLY – Less aileron uncovered – left 00019-63 33-A10 NM!
1 WING PANEL ASSEMBLY – Less aileron uncovered – right 00019-64 J3-A11 NM!
1 WING PANEL ASSEMBLY – Less aileron covered and doped Sport Yellow with 00082-12 A1025 NM!
black N.C. number – Left
1 WING PANEL ASSEMBLY – Less aileron covered and doped Sport Yellow with 00082-13 A1026 NM!
black N.C. number – Right
1 WING PANEL ASSEMBLY – Less aileron covered and doped special colors with 00082-12 A1025 NM!
N.C. number – Left
1 WING PANEL ASSEMBLY – Less aileron covered and doped special colors with 00082-13 A1026 NM!
N.C. number – Right
2 WING PANEL COVER ASSEMBLY – Includes tapes and patches 750-240 J3-A951 NM!

UNCOVERED WING PANEL PARTS
2 ANGLE – Cable guide – No. 2 drag strut U12821-000 1171 20.49
2 ANGLE – Cable guide – No. 3 drag strut 12811-00 1172 NM!
2 BOW – Wing tip U453-126 12262 46.14
2 BRACE – Channel – No. 1 – 17” 00017-71 33-100 NM!
2 BRACE – Channel – No. 2 – 18½” 00002-26 E2-197 NM!
8 BRACE – Channel – No. 3 – 20¼” 00006-89 J2-18 NM!
2 BRACE – Channel – No. 4 – 17” 00017-72 J3-101 NM!
2 BRACE – Channel – No. 5 – 14” 00017-73 33-102 NM!

14 BRACE – Channel – No. 6 – 10¾” 00017-74 J3-103 NM!
12 BRACE – False spar 00006-46 32A-103 NM!
4 BRACKET – Aileron wing hinge – long 00006-51 J2-A108 NM!
2 BRACKET – Aileron wing hinge center – short 00006-52 J2-A109 NM!
2 BRACKET – Clevis at No. 1 drag strut 12851-00 E2-1013 NM!
2 BRACKET – Wing pulley housing (on strut) U41421-000 32-414 23.35
2 BRACKET – Wing pulley housing (in wing) 41251-00 32-48 NM!
2 CABLE – Aileron control – upper U40123-003 33-A407 138.52
NOTE: When upper aileron cables part number 40123-03 are ordered for ships
prior to serial number 7862, each cable shall be accompanied by two (2)
split and safety fairleads part number 40701-00 and two (2) lock rings part
number 40081-00 (no charge for same).
8 CLAMP – No. 2 and No. 3 drag strut cable guide U80002-027 8094 23.38
6 COVER – Leading edge (section) – 72” x 12” CSI-1035 59.63
NOTE: Material for covering wing leading edge will be furnished as flat stock
only, in six foot lengths.
