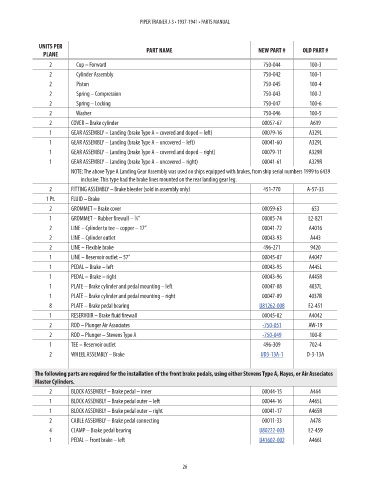

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 Cup – Forward 750-044 100-3 NM!
2 Cylinder Assembly 750-042 100-1 NM!
2 Piston 750-045 100-4 NM!
2 Spring – Compression 750-043 100-2 NM!
2 Spring – Locking 750-047 100-6 NM!
2 Washer 750-046 100-5 NM!
2 COVER – Brake cylinder 00057-67 A619 NM!
1 GEAR ASSEMBLY – Landing (brake Type A – covered and doped – left) 00079-16 A329L NM!
1 GEAR ASSEMBLY – Landing (brake Type A – uncovered – left) 00041-60 A329L NM!
1 GEAR ASSEMBLY – Landing (brake Type A – covered and doped – right) 00079-11 A329R NM!
1 GEAR ASSEMBLY – Landing (brake Type A – uncovered – right) 00041-61 A329R NM!
NOTE: The above Type A Landing Gear Assembly was used on ships equipped with brakes, from ship serial numbers 1999 to 6439
inclusive. This type had the brake lines mounted on the rear landing gear leg.
2 FITTING ASSEMBLY – Brake bleeder (sold in assembly only) 451-770 A-57-33 NM!
1 Pt. FLUID – Brake X
2 GROMMET – Brake cover 00059-63 653 NM!
1 GROMMET – Rubber firewall – ⁄8” 00005-74 E2-821 NM!
3
2 LINE – Cylinder to tee – copper – 17” 00041-72 A4016 NM!
2 LINE – Cylinder outlet 00043-93 A443 NM!
2 LINE – Flexible brake 496-271 9420 NM!
1 LINE – Reservoir outlet – 57” 00045-07 A4047 NM!
1 PEDAL – Brake – left 00043-95 A445L NM!
1 PEDAL – Brake – right 00043-96 A445R NM!
1 PLATE – Brake cylinder and pedal mounting – left 00047-08 4037L NM!
1 PLATE – Brake cylinder and pedal mounting – right 00047-09 4037R NM!
8 PLATE – Brake pedal bearing U81262-008 E2-451 12.3
1 RESERVOIR – Brake fluid firewall 00045-02 A4042 NM!
2 ROD – Plunger Air Associates -750-051 AW-19 23.86
2 ROD – Plunger – Stevens Type A -750-049 100-8 98.37
1 TEE – Reservoir outlet 496-309 702-4 NM!
2 WHEEL ASSEMBLY – Brake UD3-13A-1 D-3-13A 1895.3

The following parts are required for the installation of the front brake pedals, using either Stevens Type A, Hayes, or Air Associates
Master Cylinders.
2 BLOCK ASSEMBLY – Brake pedal – inner 00044-15 A464 NM!
1 BLOCK ASSEMBLY – Brake pedal outer – left 00044-16 A465L NM!
1 BLOCK ASSEMBLY – Brake pedal outer – right 00041-17 A465R NM!
2 CABLE ASSEMBLY – Brake pedal connecting 00011-33 A478 NM!
4 CLAMP – Brake pedal bearing U80222-003 E2-459 19.34
1 PEDAL – Front brake – left U41602-002 A466L 158.36
