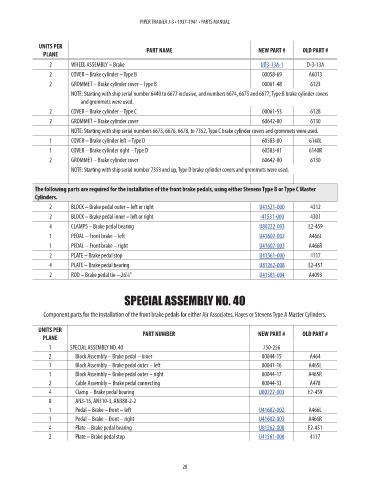

Page 36 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 WHEEL ASSEMBLY – Brake UD3-13A-1 D-3-13A 1895.3
2 COVER – Brake cylinder – Type B 00058-69 A6013 NM!
2 GROMMET – Brake cylinder cover – Type B 00061-48 6123 NM!
NOTE: Starting with ship serial number 6440 to 6672 inclusive, and numbers 6674, 6675 and 6677, Type B brake cylinder covers
and grommets were used.
2 COVER – Brake cylinder – Type C 00061-53 6128 NM!
2 GROMMET – Brake cylinder cover 60642-00 6130 NM!
NOTE: Starting with ship serial numbers 6673, 6676, 6678, to 7352, Type C brake cylinder covers and grommets were used.
1 COVER – Brake cylinder left – Type D 60583-00 6140L NM!
1 COVER – Brake cylinder right – Type D 60583-01 6140R NM!
2 GROMMET – Brake cylinder cover 60642-00 6130 NM!
NOTE: Starting with ship serial number 7353 and up, Type D brake cylinder covers and grommets were used.

The following parts are required for the installation of the front brake pedals, using either Stevens Type B or Type C Master
Cylinders.
2 BLOCK – Brake pedal outer – left or right U41521-000 4312 100.94
2 BLOCK – Brake pedal inner – left or right -41531-000 4301 83.12
4 CLAMPS – Brake pedal bearing U80222-003 E2-459 19.34
1 PEDAL – Front brake – left U41602-002 A466L 158.36
1 PEDAL – Front brake – right U41602-003 A466R 158.36
2 PLATE – Brake pedal stop U41561-000 4117 27.83
4 PLATE – Brake pedal bearing U81262-008 E2-451 12.3
2 ROD – Brake pedal tie – 26 ⁄8” U41581-004 A4093 82.65
1

SPECIAL ASSEMBLY NO. 40

Component parts for the installation of the front brake pedals for either Air Associates, Hayes or Stevens Type A Master Cylinders.

UNITS PER PART NUMBER NEW PART # OLD PART # PRICE
PLANE
1 SPECIAL ASSEMBLY NO. 40 750-256 NM!
2 Block Assembly – Brake pedal – inner 00044-15 A464 NM!
1 Block Assembly – Brake pedal outer – left 00041-16 A465L NM!
1 Block Assembly – Brake pedal outer – right 00044-17 A465R NM!
2 Cable Assembly – Brake pedal connecting 00044-33 A478 NM!
4 Clamp – Brake pedal bearing U80222-003 E2-459 19.34
8 AN3-15, AN310-3, AN380-2-2
1 Pedal – Brake – front – left U41602-002 A466L 158.36
1 Pedal – Brake – front – right U41602-003 A466R 158.36
4 Plate – Brake pedal bearing U81262-008 E2-451 12.3
2 Plate – Brake pedal stop U41561-000 4117 27.83

28
