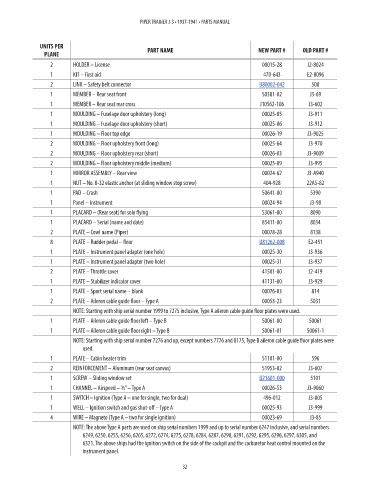

Page 40 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 HOLDER – License 00015-28 J2-8024 NM!
1 KIT – First aid 470-643 E2-8096 NM!
2 LINK – Safety belt connector U80002-042 500 81.49

1 MEMBER – Rear seat front 50381-02 J3-69 NM!
1 MEMBER – Rear seat rear cross J10562-106 J3-602 NM!
1 MOULDING – Fuselage door upholstery (long) 00025-05 J3-911 NM!
1 MOULDING – Fuselage door upholstery (short) 00025-06 J3-912 NM!
1 MOULDING – Floor top edge 00026-19 J3-9025 NM!
2 MOULDING – Floor upholstery front (long) 00025-64 J3-970 NM!
2 MOULDING – Floor upholstery rear (short) 00026-03 J3-9009 NM!
2 MOULDING – Floor upholstery middle (medium) 00025-89 J3-995 NM!
1 MIRROR ASSEMBLY – Rear view 00024-62 J3-A940 NM!
1 NUT – No. 8-32 elastic anchor (at sliding window stop screw) 404-928 22A5-82 NM!
1 PAD – Crash 50641-00 5390 NM!
1 Panel – Instrument 00024-94 J3-98 NM!
1 PLACARD – (Rear seat) for solo flying 53061-00 8090 NM!
1 PLACARD – Serial (name and date) 85411-00 8034 NM!
2 PLATE – Cowl name (Piper) 00078-28 8138 NM!
8 PLATE – Rudder pedal – floor U81262-008 E2-451 12.3
1 PLATE – Instrument panel adapter (one hole) 00025-30 J3-936 NM!
1 PLATE – Instrument panel adapter (two hole) 00025-31 J3-937 NM!
2 PLATE – Throttle cover 41501-00 J2-419 NM!
1 PLATE – Stabilizer indicator cover 41131-00 J3-929 NM!
1 PLATE – Sport serial name – blank 00076-03 814 NM!
2 PLATE – Aileron cable guide floor – Type A 00053-23 5031 NM!
NOTE: Starting with ship serial number 1999 to 7275 inclusive, Type A aileron cable guide floor plates were used.
1 PLATE – Aileron cable guide floor left – Type B 50061-00 50061 NM!
1 PLATE – Aileron cable guide floor right – Type B 50061-01 50061-1 NM!
NOTE: Starting with ship serial number 7276 and up, except numbers 7776 and 8175, Type B aileron cable guide floor plates were
used.
1 PLATE – Cabin heater trim 51101-00 596 NM!
2 REINFORCEMENT – Aluminum (rear seat canvas) 51953-02 J3-607 NM!
1 SCREW – Sliding window set U21601-000 5101 16.61
1 CHANNEL – Airspeed – ¾” – Type A 00026-53 J3-9060 NM!
1 SWITCH – Ignition (Type A – one for single, two for dual) 496-012 J3-805 NM!
1 WELL – Ignition switch and gas shut-off – Type A 00025-93 J3-999 NM!
4 WIRE – Magneto (Type A – two for single ignition) 00023-69 J3-85 NM!
NOTE: The above Type A parts are used on ship serial numbers 1999 and up to serial number 6247 inclusive, and serial numbers
6249, 6250, 6255, 6256, 6265, 6272, 6274, 6275, 6278, 6284, 6287, 6290, 6291, 6292, 6295, 6296, 6297, 6305, and
6321. The above ships had the ignition switch on the side of the cockpit and the carburetor heat control mounted on the
instrument panel.

32
