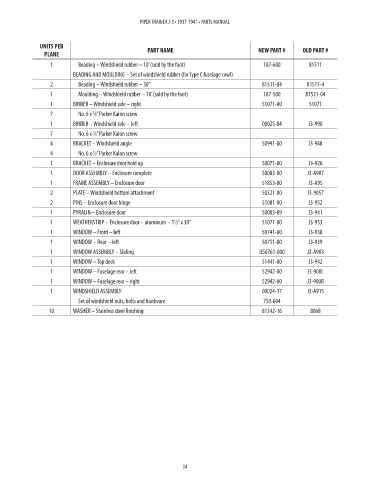

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 Beading – Windshield rubber – 10’ (sold by the foot) 187-600 81511 NM!
BEADING AND MOULDING – Set of windshield rubber (for Type C fuselage cowl)
2 Beading – Windshield rubber – 30” 81511-04 81511-4 NM!

1 Moulding – Windshield rubber – 10’ (sold by the foot) 187-500 81521-04 NM!
1 BINDER – Windshield side – right 51071-00 51071 NM!
7 No. 6 x ⁄8” Parker Kalon screw
3
1 BINDER – Windshield side – left 00025-84 J3-990 NM!
3
7 No. 6 x ⁄8” Parker Kalon screw
4 BRACKET – Windshield angle 50991-00 J3-948 NM!
4 No. 6 x ⁄8” Parker Kalon screw
3
1 BRACKET – Enclosure door hold up 50071-00 J3-926 NM!
1 DOOR ASSEMBLY – Enclosure complete 50083-00 J3-A907 NM!
1 FRAME ASSEMBLY – Enclosure door 51853-00 J3-A95 NM!
2 PLATE – Windshield bottom attachment 50321-00 J3-9057 NM!
2 PINS – Enclosure door hinge 51081-00 J3-952 NM!
1 PYRALIN – Enclosure door 50083-09 J3-941 NM!
1 WEATHERSTRIP – Enclosure door – aluminum – 1½” x 30” 51071-00 J3-953 NM!
1 WINDOW – Front – left 50741-00 J3-938 NM!
1 WINDOW – Rear – left 50751-00 J3-939 NM!
1 WINDOW ASSEMBLY – Sliding U50761-000 J3-A903 NM!
1 WINDOW – Top deck 51441-00 J3-942 NM!
1 WINDOW – Fuselage rear – left 52942-00 J3-900L NM!
1 WINDOW – Fuselage rear – right 52942-00 J3-900R NM!
1 WINDSHIELD ASSEMBLY 00024-37 J3-A915 NM!
Set of windshield nuts, bolts and hardware 750-604 NM!
10 WASHER – Stainless steel finishing 81342-16 8068 NM!

34
