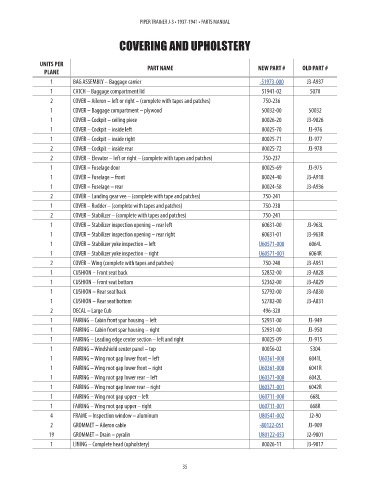

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

COVERING AND UPHOLSTERY

UNITS PER
PLANE PART NAME NEW PART # OLD PART # PRICE
1 BAG ASSEMBLY – Baggage carrier -51973-000 J3-A937 61.5
1 CATCH – Baggage compartment lid 51941-02 5070 NM!
2 COVER – Aileron – left or right – (complete with tapes and patches) 750-236 NM!
1 COVER – Baggage compartment – plywood 50032-00 50032 NM!
1 COVER – Cockpit – ceiling piece 00026-20 J3-9026 NM!
1 COVER – Cockpit – inside left 00025-70 J3-976 NM!
1 COVER – Cockpit – inside right 00025-71 J3-977 NM!
2 COVER – Cockpit – inside rear 00025-72 J3-978 NM!
2 COVER – Elevator – left or right – (complete with tapes and patches) 750-237 NM!
1 COVER – Fuselage door 00025-69 J3-975 NM!
1 COVER – Fuselage – front 00024-40 J3-A918 NM!
1 COVER – Fuselage – rear 00024-58 J3-A936 NM!
2 COVER – Landing gear vee – (complete with tape and patches) 750-241 NM!
1 COVER – Rudder – (complete with tapes and patches) 750-238 NM!
2 COVER – Stabilizer – (complete with tapes and patches) 750-241 NM!
1 COVER – Stabilizer inspection opening – rear left 60631-00 J3-963L NM!
1 COVER – Stabilizer inspection opening – rear right 60631-01 J3-963R NM!
1 COVER – Stabilizer yoke inspection – left U60571-000 6064L 26.73
1 COVER – Stabilizer yoke inspection – right U60571-001 6064R 26.73
2 COVER – Wing (complete with tapes and patches) 750-240 J3-A951 NM!
1 CUSHION – Front seat back 52852-00 J3-A828 NM!
1 CUSHION – Front seat bottom 52362-00 J3-A829 NM!
1 CUSHION – Rear seat back 52792-00 J3-A830 NM!
1 CUSHION – Rear seat bottom 52782-00 J3-A831 NM!
2 DECAL – Large Cub 496-328 NM!
1 FAIRING – Cabin front spar housing – left 52931-00 J3-949 NM!
1 FAIRING – Cabin front spar housing – right 52931-00 J3-950 NM!
1 FAIRING – Leading edge center section – left and right 00025-09 J3-915 NM!
1 FAIRING – Windshield center panel – top 00056-02 5304 NM!
1 FAIRING – Wing root gap lower front – left U60361-000 6041L 26.7
1 FAIRING – Wing root gap lower front – right U60361-000 6041R 26.7
1 FAIRING – Wing root gap lower rear – left U60371-000 6042L 65.17
1 FAIRING – Wing root gap lower rear – right U60371-001 6042R 65.17
1 FAIRING – Wing root gap upper – left U60711-000 668L 92.35
1 FAIRING – Wing root gap upper – right U60711-001 668R 110.43
4 FRAME – Inspection window – aluminum U80541-002 J2-90 14.81
2 GROMMET – Aileron cable -80122-051 J3-909 4.37
19 GROMMET – Drain – pyralin U80122-053 J2-9001 4.09
1 LINING – Complete head (upholstery) 00026-11 J3-9017 NM!

35
