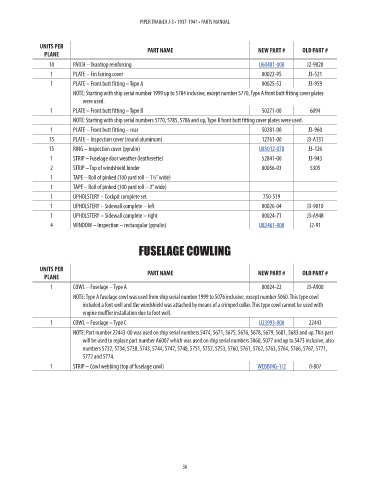

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
10 PATCH – Teardrop reinforcing U60481-000 J2-9028 7.34
1 PLATE – Fin fairing cover 00022-95 J3-521 NM!
1 PLATE – Front butt fitting – Type A 00025-53 J3-959 NM!
NOTE: Starting with ship serial number 1999 up to 5784 inclusive, except number 5770, Type A front butt fitting cover plates
were used.
1 PLATE – Front butt fitting – Type B 50271-00 6094 NM!
NOTE: Starting with ship serial numbers 5770, 5785, 5786 and up, Type B front butt fitting cover plates were used.
1 PLATE – Front butt fitting – rear 50281-00 J3-960 NM!
15 PLATE – Inspection cover (round aluminum) 12761-00 J3-A131 NM!
15 RING – Inspection cover (pyralin) U85012-078 J3-126 8.99
1 STRIP – Fuselage door weather (leatherette) 52841-00 J3-943 NM!
2 STRIP – Top of windshield binder 00056-03 5305 NM!
1 TAPE – Roll of pinked (100 yard roll – 1½” wide) X
1 TAPE – Roll of pinked (100 yard roll – 2” wide) X
1 UPHOLSTERY – Cockpit complete set 750-519 NM!
1 UPHOLSTERY – Sidewall complete – left 00026-04 J3-9010 NM!
1 UPHOLSTERY – Sidewall complete – right 00024-71 J3-A948 NM!
4 WINDOW – Inspection – rectangular (pyralin) U82461-000 J2-91 18.02

FUSELAGE COWLING

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 COWL – Fuselage – Type A 00024-22 J3-A900 NM!
NOTE: Type A fuselage cowl was used from ship serial number 1999 to 5076 inclusive, except number 5060. This type cowl
included a foot well and the windshield was attached by means of a crimped collar. This type cowl cannot be used with
engine muffler installation due to foot well.
1 COWL – Fuselage – Type C U23993-000 22443 1115.61
NOTE: Part number 22443-00 was used on ship serial numbers 5474, 5671, 5675, 5676, 5678, 5679, 5681, 5683 and up. This part
will be used to replace part number A6007 which was used on ship serial numbers 5060, 5077 and up to 5473 inclusive, also
numbers 5732, 5734, 5738, 5743, 5744, 5747, 5748, 5751, 5752, 5753, 5760, 5761, 5762, 5763, 5764, 5766, 5767, 5771,
5772 and 5774.
1 STRIP – Cowl webbing (top of fuselage cowl) WEBBING-1/2 0-807 0.8
