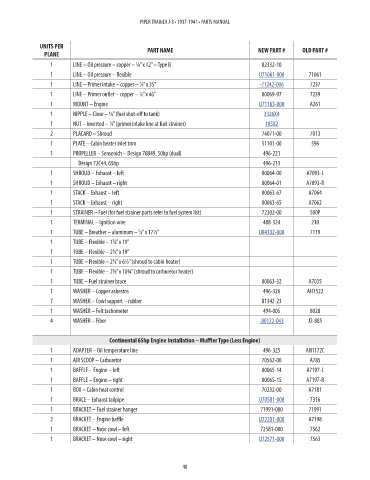

Page 56 - 1937-41 Piper J-3 Trainer Parts Catalog
P. 56
PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 LINE – Oil pressure – copper – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
1 LINE – Primer intake – copper – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer outlet – copper – ⁄8” x 46” 00069-97 7239 NM!
1
1 MOUNT – Engine U71163-000 A261 1197.11
1 NIPPLE – Close – ¼” (fuel shut-off to tank) 3326X4 0.97
1 NUT – Inverted – ⁄8” (primer intake line at fuel strainer) 105X2 2.92
1
2 PLACARD – Shroud 74071-00 7013 NM!
1 PLATE – Cabin heater inlet trim 51101-00 596 NM!
1 PROPELLER – Sensenich – Design 76B49, 50hp (dual) 496-221 NM!
Design 72C44, 65hp 496-213 NM!
1 SHROUD – Exhaust – left 00064-00 A7093-L NM!
1 SHROUD – Exhaust – right 00064-01 A7093-R NM!
1 STACK – Exhaust – left 00063-67 A7064 NM!
1 STACK – Exhaust – right 00063-65 A7062 NM!
1 STRAINER – Fuel (for fuel strainer parts refer to fuel system list) 72302-00 500P NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
1 TUBE – Breather – aluminum – ⁄8” x 17½” U84332-000 7119 99.11
5
1 TUBE – Flexible – 1 ⁄8” x 19” x
1
1
1 TUBE – Flexible – 2 ⁄8” x 19” x
1 TUBE – Flexible – 2 ⁄8” x 6½” (shroud to cabin heater) x
1
1 TUBE – Flexible – 2 ⁄8” x 10¾” (shroud to carburetor heater) x
1
1 TUBE – Fuel strainer brace 00063-32 A7035 NM!
1 WASHER – Copper asbestos 496-326 AH1522 NM!
7 WASHER – Cowl support – rubber 81342-23 NM!
1 WASHER – Felt tachometer 494-005 8020 NM!
4 WASHER – Fiber -80122-043 J2-885 4.51
Continental 65hp Engine Installation – Muffler Type (Less Engine)
1 ADAPTER – Oil temperature line 496-325 AH1172C NM!
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BAFFLE – Engine – left 00065-14 A7197-L NM!
1 BAFFLE – Engine – right 00065-15 A7197-R NM!
1 BOX – Cabin heat control 70232-00 A7181 NM!
1 BRACE – Exhaust tailpipe U70581-000 7316 81.12
1 BRACKET – Fuel strainer hanger 71991-000 71991 NM!
2 BRACKET – Engine baffle U72201-000 A7198 79.87
1 BRACKET – Nose cowl – left 72581-000 7562 NM!
1 BRACKET – Nose cowl – right U72571-000 7563 108.72
