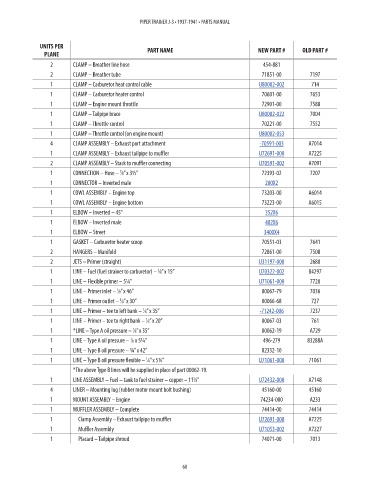

Page 68 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
2 CLAMP – Breather line hose 454-881 NM!
2 CLAMP – Breather tube 71851-00 7197 NM!
1 CLAMP – Carburetor heat control cable U80002-002 714 34.32

1 CLAMP – Carburetor heater control 70601-00 7653 NM!
1 CLAMP – Engine mount throttle 72901-00 7588 NM!
1 CLAMP – Tailpipe brace U80002-022 7004 40.39
1 CLAMP – Throttle control 70221-00 7552 NM!
1 CLAMP – Throttle control (on engine mount) U80002-053 27.18
4 CLAMP ASSEMBLY – Exhaust port attachment -70591-003 A7014 35.53
1 CLAMP ASSEMBLY – Exhaust tailpipe to muffler U72691-000 A7225 35.86
2 CLAMP ASSEMBLY – Stack to muffler connecting U70591-002 A7091 34.61
5
1 CONNECTION – Hose – ⁄8” x 3½” 72393-02 7207 NM!
1 CONNECTOR – Inverted male 200X2 2.11
1 COWL ASSEMBLY – Engine top 73203-00 A6014 NM!
1 COWL ASSEMBLY – Engine bottom 73223-00 A6015 NM!
1 ELBOW – Inverted – 45° 352X6 7.83
1 ELBOW – Inverted male 402X6 7.94
1 ELBOW – Street 3400X4 7.4
1 GASKET – Carburetor heater scoop 70551-03 7641 NM!
2 HANGERS – Manifold 72861-00 7508 NM!
2 JETS – Primer (straight) U31197-000 2680 59.87
1 LINE – Fuel (fuel strainer to carburetor) – ⁄8” x 15” U70322-002 84297 183.92
3
1 LINE – Flexible primer – 5¼” U71061-000 7720 143.43
1
1 LINE – Primer inlet – ⁄8” x 46” 00067-79 7036 NM!
1 LINE – Primer outlet – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer – tee to left bank – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer – tee to right bank – ⁄8” x 20” 00067-03 761 NM!
1
1 *LINE – Type A oil pressure – ⁄8” x 35” 00062-19 A729 NM!
1
1 LINE – Type A oil pressure – ⁄8 x 5¼” 496-279 83288A NM!
1
1 LINE – Type B oil pressure – ¼” x 42” 82332-10 NM!
1 LINE – Type B oil pressure flexible – ⁄8” x 5¼” U71061-000 71061 143.43
1
*The above Type B lines will be supplied in place of part 00062-19.
1 LINE ASSEMBLY – Fuel – tank to fuel strainer – copper – 11 ⁄8” U72432-000 A7148 138.28
5
4 LINER – Mounting lug (rubber motor mount bolt bushing) 45160-00 45160 NM!
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
1 MUFFLER ASSEMBLY – Complete 74414-00 74414 NM!
1 Clamp Assembly – Exhaust tailpipe to muffler U72691-000 A7225 35.86
1 Muffler Assembly U71053-002 A7227 966.01
1 Placard – Tailpipe shroud 74071-00 7013 NM!

60
