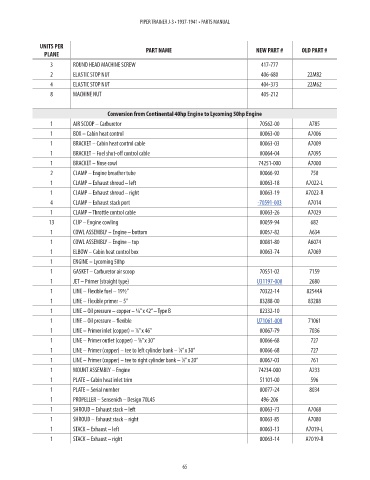

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
3 ROUND HEAD MACHINE SCREW 417-777 NM!
2 ELASTIC STOP NUT 406-680 22M82 NM!
4 ELASTIC STOP NUT 404-373 22M62 NM!
8 MACHINE NUT 405-212 NM!
Conversion from Continental 40hp Engine to Lycoming 50hp Engine
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BOX – Cabin heat control 00063-00 A7006 NM!
1 BRACKET – Cabin heat control cable 00063-03 A7009 NM!
1 BRACKET – Fuel shut-off control cable 00064-04 A7095 NM!
1 BRACKET – Nose cowl 74251-000 A7000 NM!
2 CLAMP – Engine breather tube 00066-92 750 NM!
1 CLAMP – Exhaust shroud – left 00063-18 A7022-L NM!
1 CLAMP – Exhaust shroud – right 00063-19 A7022-R NM!
4 CLAMP – Exhaust stack port -70591-003 A7014 35.53
1 CLAMP – Throttle control cable 00063-26 A7029 NM!
13 CLIP – Engine cowling 00059-94 682 NM!
1 COWL ASSEMBLY – Engine – bottom 00057-82 A634 NM!
1 COWL ASSEMBLY – Engine – top 00081-80 A6074 NM!
1 ELBOW – Cabin heat control box 00063-74 A7069 NM!
1 ENGINE – Lycoming 50hp x
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
1 JET – Primer (straight type) U31197-000 2680 59.87
1 LINE – Flexible fuel – 19½” 70322-14 82544A NM!
1 LINE – Flexible primer – 5” 83288-00 83288 NM!
1 LINE – Oil pressure – copper – ¼” x 42” – Type B 82332-10 NM!
1 LINE – Oil pressure – flexible U71061-000 71061 143.43
1 LINE – Primer inlet (copper) – ⁄8” x 46” 00067-79 7036 NM!
1
1 LINE – Primer outlet (copper) – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer (copper) – tee to left cylinder bank – ⁄8” x 30” 00066-68 727 NM!
1
1 LINE – Primer (copper) – tee to right cylinder bank – ⁄8” x 20” 00067-03 761 NM!
1
1 MOUNT ASSEMBLY – Engine 74234-000 A233 NM!
1 PLATE – Cabin heat inlet trim 51101-00 596 NM!
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 70L45 496-206 NM!
1 SHROUD – Exhaust stack – left 00063-73 A7068 NM!
1 SHROUD – Exhaust stack – right 00063-85 A7080 NM!
1 STACK – Exhaust – left 00063-13 A7019-L NM!
1 STACK – Exhaust – right 00063-14 A7019-R NM!
