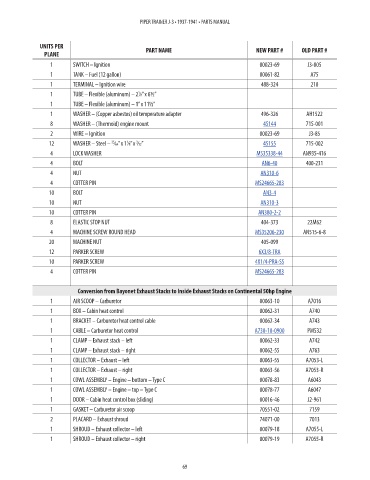

Page 77 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 SWITCH – Ignition 00023-69 J3-805 NM!
1 TANK – Fuel (12 gallon) 00061-82 A75 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!

1 TUBE – Flexible (aluminum) – 2 ⁄8” x 6½”
1
1 TUBE – Flexible (aluminum) – 1” x 11½”
1 WASHER – (Copper asbestos) oil temperature adapter 496-326 AH1522 NM!
8 WASHER – (Thermoid) engine mount 45144 715-001 24.3
2 WIRE – Ignition 00023-69 J3-85 NM!
12 WASHER – Steel – ⁄64” x 1 ⁄8” x ⁄32” 45155 715-002 1.03
1
25
3
4 LOCK WASHER MS35338-44 AN935-416 0.08
4 BOLT AN6-40 400-231 3.72
4 NUT AN310-6 1.8
4 COTTER PIN MS24665-283 0.04
10 BOLT AN3-4 0.6
10 NUT AN310-3 1.5
10 COTTER PIN AN380-2-2 0.04
8 ELASTIC STOP NUT 404-373 22M62 NM!
4 MACHINE SCREW ROUND HEAD MS35206-230 AN515-6-8 0.08
20 MACHINE NUT 405-099 NM!
12 PARKER SCREW 6X3/8-TRA 0.06
10 PARKER SCREW 4X1/4-PRA-SS 0.02
4 COTTER PIN MS24665-283 0.04

Conversion from Bayonet Exhaust Stacks to Inside Exhaust Stacks on Continental 50hp Engine
1 AIR SCOOP – Carburetor 00063-10 A7016 NM!
1 BOX – Cabin heat control 00062-31 A740 NM!
1 BRACKET – Carburetor heat control cable 00062-34 A743 NM!
1 CABLE – Carburetor heat control A730-10-0900 PM532 78.05
1 CLAMP – Exhaust stack – left 00062-33 A742 NM!
1 CLAMP – Exhaust stack – right 00062-55 A763 NM!
1 COLLECTOR – Exhaust – left 00063-55 A7053-L NM!

1 COLLECTOR – Exhaust – right 00063-56 A7053-R NM!
1 COWL ASSEMBLY – Engine – bottom – Type C 00078-83 A6043 NM!
1 COWL ASSEMBLY – Engine – top – Type C 00078-77 A6047 NM!
1 DOOR – Cabin heat control box (sliding) 00016-46 J2-961 NM!
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
2 PLACARD – Exhaust shroud 74071-00 7013 NM!
1 SHROUD – Exhaust collector – left 00079-18 A7055-L NM!
1 SHROUD – Exhaust collector – right 00079-19 A7055-R NM!

69
