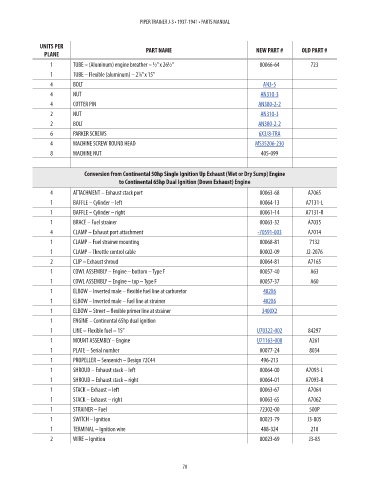

Page 78 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 TUBE – (Aluminum) engine breather – ½” x 26½” 00066-64 723 NM!
1 TUBE – Flexible (aluminum) – 2 ⁄8” x 15”
1
4 BOLT AN3-5 0.6

4 NUT AN310-3 1.5
4 COTTER PIN AN380-2-2 0.04
2 NUT AN310-3 1.5
2 BOLT AN380-2-2 0.04
6 PARKER SCREWS 6X3/8-TRA 0.06
4 MACHINE SCREW ROUND HEAD MS35206-230 0.08
8 MACHINE NUT 405-099 NM!

Conversion from Continental 50hp Single Ignition Up Exhaust (Wet or Dry Sump) Engine
to Continental 65hp Dual Ignition (Down Exhaust) Engine
4 ATTACHMENT – Exhaust stack port 00063-68 A7065 NM!
1 BAFFLE – Cylinder – left 00064-13 A7131-L NM!
1 BAFFLE – Cylinder – right 00061-14 A7131-R NM!
1 BRACE – Fuel strainer 00063-32 A7035 NM!
4 CLAMP – Exhaust port attachment -70591-003 A7014 35.53
1 CLAMP – Fuel strainer mounting 00068-81 7132 NM!
1 CLAMP – Throttle control cable 80002-09 J2-2076 NM!
2 CLIP – Exhaust shroud 00064-81 A7165 NM!
1 COWL ASSEMBLY – Engine – bottom – Type F 00057-40 A63 NM!
1 COWL ASSEMBLY – Engine – top – Type F 00057-37 A60 NM!
1 ELBOW – Inverted male – flexible fuel line at carburetor 402X6 7.94
1 ELBOW – Inverted male – fuel line at strainer 402X6 7.94
1 ELBOW – Street – flexible primer line at strainer 3400X2 2.93
1 ENGINE – Continental 65hp dual ignition
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 MOUNT ASSEMBLY – Engine U71163-000 A261 1197.11
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 72C44 496-213 NM!

1 SHROUD – Exhaust stack – left 00064-00 A7093-L NM!
1 SHROUD – Exhaust stack – right 00064-01 A7093-R NM!
1 STACK – Exhaust – left 00063-67 A7064 NM!
1 STACK – Exhaust – right 00063-65 A7062 NM!
1 STRAINER – Fuel 72302-00 500P NM!
1 SWITCH – Ignition 00023-79 J3-805 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
2 WIRE – Ignition 00023-69 J3-85 NM!

70
