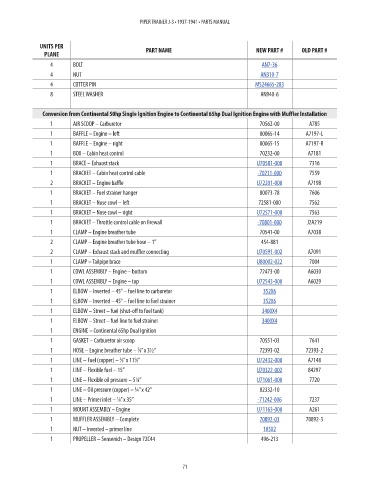

P. 79
PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL
UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
4 BOLT AN7-36 3.9
4 NUT AN310-7 1.5
4 COTTER PIN MS24665-283 0.04
8 STEEL WASHER AN940-6 NM!
Conversion from Continental 50hp Single Ignition Engine to Continental 65hp Dual Ignition Engine with Muffler Installation
1 AIR SCOOP – Carburetor 70562-00 A785 NM!
1 BAFFLE – Engine – left 00065-14 A7197-L NM!
1 BAFFLE – Engine – right 00065-15 A7197-R NM!
1 BOX – Cabin heat control 70232-00 A7181 NM!
1 BRACE – Exhaust stack U70581-000 7316 81.12
1 BRACKET – Cabin heat control cable -70211-000 7559 10.01
2 BRACKET – Engine baffle U72201-000 A7198 79.87
1 BRACKET – Fuel strainer hanger 00073-78 7606 NM!
1 BRACKET – Nose cowl – left 72581-000 7562 NM!
1 BRACKET – Nose cowl – right U72571-000 7563 108.72
1 BRACKET – Throttle control cable on firewall -70801-000 J2A219 74.4
1 CLAMP – Engine breather tube 70541-00 A7038 NM!
2 CLAMP – Engine breather tube hose – 1” 454-881 NM!
2 CLAMP – Exhaust stack and muffler connecting U70591-002 A7091 34.61
1 CLAMP – Tailpipe brace U80002-022 7004 40.39
1 COWL ASSEMBLY – Engine – bottom 72473-00 A6030 NM!
1 COWL ASSEMBLY – Engine – top U72543-000 A6029 871.58
1 ELBOW – Inverted – 45° – fuel line to carburetor 352X6 7.83
1 ELBOW – Inverted – 45° – fuel line to fuel strainer 352X6 7.83
1 ELBOW – Street – fuel (shut-off to fuel tank) 3400X4 7.4
1 ELBOW – Street – fuel line to fuel strainer 3400X4 7.4
1 ENGINE – Continental 65hp Dual Ignition x
1 GASKET – Carburetor air scoop 70551-03 7641 NM!
1 HOSE – Engine breather tube – ⁄8” x 3½” 72393-02 72393-2 NM!
5
1 LINE – Fuel (copper) – ⁄8” x 11 ⁄8” U72432-000 A7148 138.28
5
3
1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 LINE – Flexible oil pressure – 5¼” U71061-000 7720 143.43
1 LINE – Oil pressure (copper) – ¼” x 42” 82332-10 NM!
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1
1 MOUNT ASSEMBLY – Engine U71163-000 A261 1197.11
1 MUFFLER ASSEMBLY – Complete 70892-03 70892-3 NM!
1 NUT – Inverted – primer line 105X2 2.92
1 PROPELLER – Sensenich – Design 72C44 496-213 NM!
71
