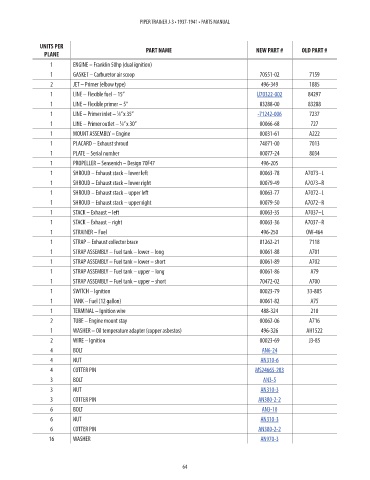

Page 72 - 1937-41 Piper J-3 Trainer Parts Catalog

PIPER TRAINER J-3 • 1937-1941 • PARTS MANUAL

UNITS PER PART NAME NEW PART # OLD PART # PRICE
PLANE
1 ENGINE – Franklin 50hp (dual ignition)
1 GASKET – Carburetor air scoop 70551-02 7159 NM!
2 JET – Primer (elbow type) 496-349 1885 NM!

1 LINE – Flexible fuel – 15” U70322-002 84297 183.92
1 LINE – Flexible primer – 5” 83288-00 83288 NM!
1 LINE – Primer inlet – ⁄8” x 35” -71242-006 7237 68.58
1
1 LINE – Primer outlet – ⁄8” x 30” 00066-68 727 NM!
1
1 MOUNT ASSEMBLY – Engine 00031-61 A222 NM!
1 PLACARD – Exhaust shroud 74071-00 7013 NM!
1 PLATE – Serial number 00077-24 8034 NM!
1 PROPELLER – Sensenich – Design 70F47 496-205 NM!
1 SHROUD – Exhaust stack – lower left 00063-78 A7073–L NM!
1 SHROUD – Exhaust stack – lower right 00079-49 A7073–R NM!
1 SHROUD – Exhaust stack – upper left 00063-77 A7072–L NM!
1 SHROUD – Exhaust stack – upper right 00079-50 A7072–R NM!
1 STACK – Exhaust – left 00063-35 A7037–L NM!
1 STACK – Exhaust – right 00063-36 A7037–R NM!
1 STRAINER – Fuel 496-250 OW-464 NM!
1 STRAP – Exhaust collector brace 81262-21 7118 NM!
1 STRAP ASSEMBLY – Fuel tank – lower – long 00061-88 A701 NM!
1 STRAP ASSEMBLY – Fuel tank – lower – short 00061-89 A702 NM!
1 STRAP ASSEMBLY – Fuel tank – upper – long 00061-86 A79 NM!
1 STRAP ASSEMBLY – Fuel tank – upper – short 70472-02 A700 NM!
1 SWITCH – Ignition 00023-79 33-805 NM!
1 TANK – Fuel (12 gallon) 00061-82 A75 NM!
1 TERMINAL – Ignition wire 488-324 210 NM!
2 TUBE – Engine mount stay 00062-06 A716 NM!
1 WASHER – Oil temperature adapter (copper asbestos) 496-326 AH1522 NM!
2 WIRE – Ignition 00023-69 J3-85 NM!
4 BOLT AN6-24 1.36
4 NUT AN310-6 1.8

4 COTTER PIN MS24665-283 0.04
3 BOLT AN3-5 0.6
3 NUT AN310-3 1.5
3 COTTER PIN AN380-2-2 0.04
6 BOLT AN3-10 0.72
6 NUT AN310-3 1.5
6 COTTER PIN AN380-2-2 0.04
16 WASHER AN970-3 0.16

64
