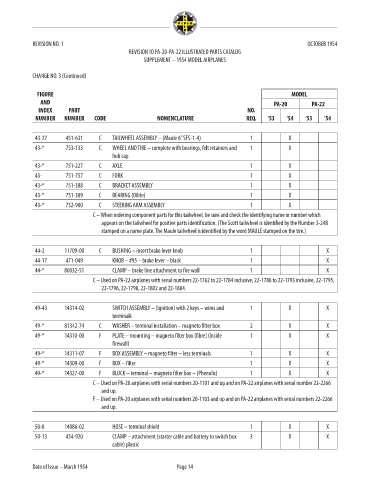

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54

43-27 451-631 C TAILWHEEL ASSEMBLY – (Maule 6” SFS-1-4) 1 X
43-* 753-133 C WHEEL AND TIRE – complete with bearings, felt retainers and 1 X
hub cap
43-* 751-227 C AXLE 1 X
43- 751-757 C FORK 1 X
43-* 751-388 C BRACKET ASSEMBLY 1 X
43-* 751-389 C BEARING (Oilite) 1 X

43-* 752-900 C STEERING ARM ASSEMBLY 1 X
C – When ordering component parts for this tailwheel, be sure and check the identifying name or number which
appears on the tailwheel for positive parts identification. (The Scott tailwheel is identified by the Number 3-24B
stamped on a name plate. The Maule tailwheel is identified by the word MAULE stamped on the tire.)

44-2 11709-00 C BUSHING – insert brake lever knob 1 X
44-17 471-049 KNOB – #95 – brake lever – black 1 X
44-* 80032-51 CLAMP – brake line attachment to fire wall 1 X
C – Used on PA-22 airplanes with serial numbers 22-1762 to 22-1784 inclusive, 22-1786 to 22-1793 inclusive, 22-1795,
22-1796, 22-1798, 22-1802 and 22-1804.

49-43 14314-02 SWITCH ASSEMBLY – (ignition) with 2 keys – wires and 1 X X
terminals
49-* 81342-74 C WASHER – terminal installation – magneto filter box 2 X X
49-* 14310-00 F PLATE – mounting – magneto filter box (fibre) (inside 1 X X
firewall)
49-* 14311-07 F BOX ASSEMBLY – magneto filter – less terminals 1 X X
49-* 14309-00 F BOX – filter 1 X X
49-* 14327-00 F BLOCK – terminal – magneto filter box – (Phenolic) 1 X X
C – Used on PA-20 airplanes with serial numbers 20-1101 and up and on PA-22 airplanes with serial number 22-2266
and up.
F – Used on PA-20 airplanes with serial numbers 20-1103 and up and on PA-22 airplanes with serial numbers 22-2266
and up.

50-8 14086-02 HOSE – terminal shield 1 X X
50-13 454-920 CLAMP – attachment (starter cable and battery to switch box 3 X X
cable) plastic

Date of Issue – March 1954 Page 14
