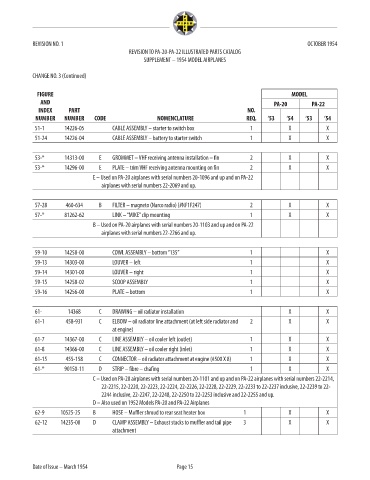

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54
51-1 14226-05 CABLE ASSEMBLY – starter to switch box 1 X X
51-24 14226-04 CABLE ASSEMBLY – battery to starter switch 1 X X

53-* 14313-00 E GROMMET – VHF receiving antenna installation – fin 2 X X
53-* 14296-00 E PLATE – trim VHF receiving antenna mounting on fin 2 X X
E – Used on PA-20 airplanes with serial numbers 20-1096 and up and on PA-22
airplanes with serial numbers 22-2069 and up.

57-28 460-634 B FILTER – magneto (Narco radio) (#NF1F247) 2 X X
57-* 81262-62 LINK – “MIKE” clip mounting 1 X X
B – Used on PA-20 airplanes with serial numbers 20-1103 and up and on PA-22
airplanes with serial numbers 22-2266 and up.

59-10 14258-00 COWL ASSEMBLY – bottom “135” 1 X
59-13 14303-00 LOUVER – left 1 X
59-14 14301-00 LOUVER – right 1 X
59-15 14258-02 SCOOP ASSEMBLY 1 X
59-16 14256-00 PLATE – bottom 1 X

61- 14368 C DRAWING – oil radiator installation X X

61-1 458-931 C ELBOW – oil radiator line attachment (at left side radiator and 2 X X
at engine)
61-7 14367-00 C LINE ASSEMBLY – oil cooler left (outlet) 1 X X
61-8 14366-00 C LINE ASSEMBLY – oil cooler right (inlet) 1 X X
61-15 455-158 C CONNECTOR – oil radiator attachment at engine (#500 X 8) 1 X X
61-* 90150-11 D STRIP – fibre – chafing 1 X X
C – Used on PA-20 airplanes with serial numbers 20-1101 and up and on PA-22 airplanes with serial numbers 22-2214,
22-2215, 22-2220, 22-2223, 22-2224, 22-2226, 22-2228, 22-2229, 22-2233 to 22-2237 inclusive, 22-2239 to 22-
2244 inclusive, 22-2247, 22-2248, 22-2250 to 22-2253 inclusive and 22-2255 and up.
D – Also used on 1952 Models PA-20 and PA-22 Airplanes
62-9 10525-25 B HOSE – Muffler shroud to rear seat heater box 1 X X
62-12 14235-00 D CLAMP ASSEMBLY – Exhaust stacks to muffler and tail pipe 3 X X
attachment

Date of Issue – March 1954 Page 15
