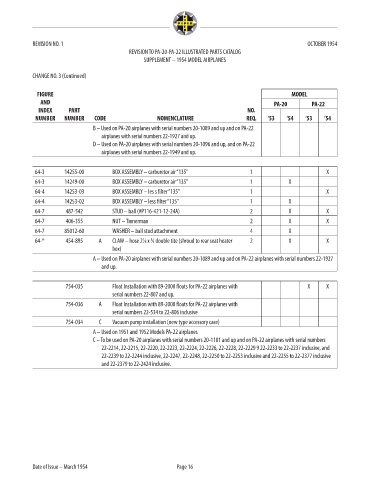

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54
B – Used on PA-20 airplanes with serial numbers 20-1089 and up and on PA-22
airplanes with serial numbers 22-1927 and up.
D – Used on PA-20 airplanes with serial numbers 20-1096 and up, and on PA-22
airplanes with serial numbers 22-1949 and up.

64-3 14255-00 BOX ASSEMBLY – carburetor air “135” 1 X
64-3 14249-00 BOX ASSEMBLY – carburetor air “135” 1 X
64-4 14253-03 BOX ASSEMBLY – les s filter “135” 1 X
64-4 14253-02 BOX ASSEMBLY – less filter “135” 1 X
64-7 487-542 STUD – ball (#P116-421-12-24A) 2 X X
64-7 406-355 NUT – Tinnerman 2 X X
64-7 85012-60 WASHER – ball stud attachment 4 X
64-* 454-895 A CLAW – hose 2 ⁄8 x ⁄4 double tite (shroud to rear seat heater 2 X X
1
3
box)
A – Used on PA-20 airplanes with serial numbers 20-1089 and up and on PA-22 airplanes with serial numbers 22-1927
and up.

754-035 Float Installation with 89-2000 floats for PA-22 airplanes with X X
serial numbers 22-807 and up.
754-036 A Float Installation with 89-2000 floats for PA-22 airplanes with
serial numbers 22-534 to 22-806 inclusive
754-034 C Vacuum pump installation (new type accessory case)
A – Used on 1951 and 1952 Models PA-22 airplanes
C – To be used on PA-20 airplanes with serial numbers 20-1101 and up and on PA-22 airplanes with serial numbers
22-2214, 22-2215, 22-2220, 22-2223, 22-2224, 22-2226, 22-2228, 22-2229 9 22-2233 to 22-2237 inclusive, and
22-2239 to 22-2244 inclusive, 22-2247, 22-2248, 22-2250 to 22-2253 inclusive and 22-2255 to 22-2377 inclusive
and 22-2379 to 22-2424 inclusive.

Date of Issue – March 1954 Page 16
