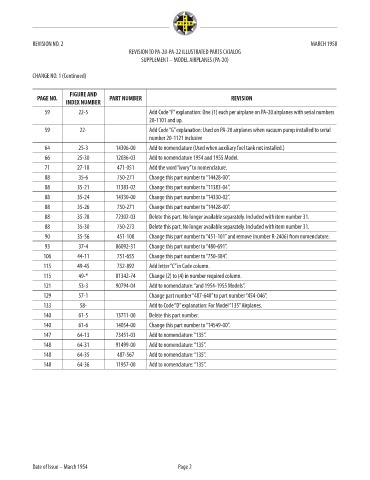

REVISION NO. 2 MARCH 1958
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – MODEL AIRPLANES (PA-20)

CHANGE NO. 1 (Continued)

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
59 22-5 Add Code “F” explanation: One (1) each per airplane on PA-20 airplanes with serial numbers
20-1101 and up.
59 22- Add Code “G” explanation: Used on PA-20 airplanes when vacuum pump installed to serial
number 20-1121 inclusive
64 25-3 14306-00 Add to nomenclature (Used when auxiliary fuel tank not installed.)
66 25-30 12036-03 Add to nomenclature 1954 and 1955 Model.
71 27-18 471-051 Add the word “ivory” to nomenclature.
88 35-6 750-271 Change this part number to “14428-00”.
88 35-21 11383-02 Change this part number to “11383-04”.
88 35-24 14330-00 Change this part number to “14330-02”.
88 35-26 750-271 Change this part number to “14428-00”.
88 35-28 72302-03 Delete this part. No longer available separately. Included with item number 31.
88 35-30 750-273 Delete this part. No longer available separately. Included with item number 31.
90 35-56 451-100 Change this part number to “451-101” and remove (number R-2406) from nomenclature.
93 37-4 86092-31 Change this part number to “480-691”.
106 44-11 751-655 Change this part number to “750-384”.
115 49-45 752-892 Add letter “C” in Code column.
115 49-* 81342-74 Change (2) to (4) in number required column.
121 53-3 90794-04 Add to nomenclature: “and 1954-1955 Models”.
129 57-1 Change part number “487-640” to part number “454-046”.
133 58- Add to Code “D” explanation: For Model “135” Airplanes.
140 61-5 13711-00 Delete this part number.
140 61-6 14054-00 Change this part number to “14549-00”.
147 64-13 73451-03 Add to nomenclature: “135”.
148 64-31 91499-00 Add to nomenclature: “135”.
148 64-35 487-567 Add to nomenclature: “135”.
148 64-36 11957-00 Add to nomenclature: “135”.

Date of Issue – March 1954 Page 2
