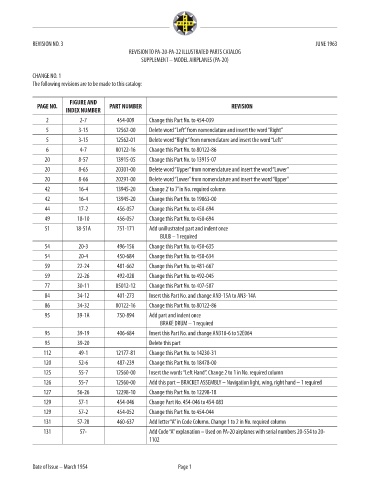

REVISION NO. 3 JUNE 1963
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – MODEL AIRPLANES (PA-20)

CHANGE NO. 1
The following revisions are to be made to this catalog:

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
2 2-7 454-009 Change this Part No. to 454-039
5 3-15 12562-00 Delete word “Left” from nomenclature and insert the word “Right”
5 3-15 12562-01 Delete word “Right” from nomenclature and insert the word “Left”
6 4-7 80122-16 Change this Part No. to 80122-86
20 8-57 13915-05 Change this Part No. to 13915-07
20 8-65 20301-00 Delete word “Upper” from nomenclature and insert the word “Lower”
20 8-66 20291-00 Delete word “Lower” from nomenclature and insert the word “Upper”
42 16-4 13945-20 Change 2’ to 7’ in No. required column
42 16-4 13945-20 Change this Part No. to 19063-00
44 17-2 456-057 Change this Part No. to 450-694
49 18-10 456-057 Change this Part No. to 450-694
51 18-51A 751-171 Add unillustrated part and indent once
BULB – 1 required
54 20-3 496-156 Change this Part No. to 450-635
54 20-4 450-684 Change this Part No. to 450-634
59 22-24 481-662 Change this Part No. to 481-667
59 22-26 492-028 Change this Part No. to 492-045
77 30-11 85012-12 Change this Part No. to 407-587
84 34-12 401-273 Insert this Part No. and change AN3-15A to AN3-14A
86 34-32 80122-16 Change this Part No. to 80122-86
95 39-1A 750-894 Add part and indent once
BRAKE DRUM – 1 required
95 39-19 406-684 Insert this Part No. and change AN310-6 to 52E064
95 39-20 Delete this part
112 49-1 12177-81 Change this Part No. to 14230-31
120 52-6 487-239 Change this Part No. to 18478-00
125 55-7 12560-00 Insert the words “Left Hand”. Change 2 to 1 in No. required column
126 55-7 12560-00 Add this part – BRACKET ASSEMBLY – Navigation light, wing, right hand – 1 required
127 56-26 12298-10 Change this Part No. to 12298-18
129 57-1 454-046 Change Part No. 454-046 to 454-083
129 57-2 454-052 Change this Part No. to 454-044
131 57-28 460-637 Add letter “A” in Code Column. Change 1 to 2 in No. required column
131 57- Add Code “A” explanation – Used on PA-20 airplanes with serial numbers 20-554 to 20-
1102

Date of Issue – March 1954 Page 1
