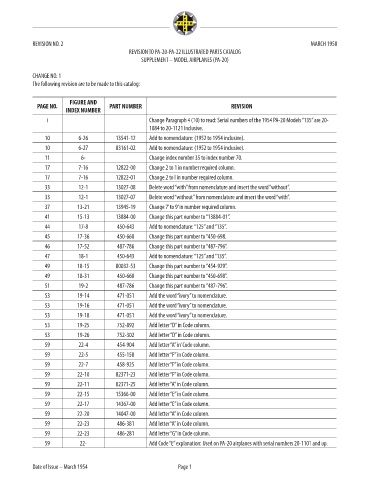

REVISION NO. 2 MARCH 1958
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – MODEL AIRPLANES (PA-20)

CHANGE NO. 1
The following revision are to be made to this catalog:

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
i Change Paragraph 4 (10) to read: Serial numbers of the 1954 PA-20 Models “135” are 20-
1084 to 20-1121 Inclusive.
10 6-26 13541-12 Add to nomenclature: (1952 to 1954 inclusive).
10 6-27 83161-02 Add to nomenclature: (1952 to 1954 inclusive).
11 6- Change index number 35 to index number 70.
17 7-16 12822-00 Change 2 to 1 in number required column.
17 7-16 12822-01 Change 2 to l in number required column.
33 12-1 13027-08 Delete word “with” from nomenclature and insert the word “without”.
33 12-1 13027-07 Delete word “without” from nomenclature and insert the word “with”.
37 13-21 13945-19 Change 7’ to 9’ in number required column.
41 15-13 13884-00 Change this part number to “13884-01”.
44 17-8 450-643 Add to nomenclature: “125” and “135”.
45 17-36 450-660 Change this part number to “450-698.
46 17-52 487-786 Change this part number to “487-796”.
47 18-1 450-643 Add to nomenclature: “125” and “135”.
49 18-15 80032-53 Change this part number to “454-929”.
49 18-31 450-660 Change this part number to “450-698”.
51 19-2 487-786 Change this part number to “487-796”.
53 19-14 471-051 Add the word “ivory” to nomenclature.
53 19-16 471-051 Add the word “ivory” to nomenclature.
53 19-18 471-051 Add the word “ivory” to nomenclature.
53 19-25 752-892 Add letter “D” in Code column.
53 19-26 752-302 Add letter “D” in Code column.
59 22-4 454-904 Add letter “A” in’ Code column.
59 22-5 455-158 Add letter “F” in Code column.
59 22-7 458-925 Add letter “F” in Code column.
59 22-10 82371-23 Add letter “F” in Code column.
59 22-11 82371-25 Add letter “A” in Code column.
59 22-15 15366-00 Add letter “E” in Code column.
59 22-17 14367-00 Add letter “E” in Code column.
59 22-20 14047-00 Add letter “A” in Code column.
59 22-23 486-381 Add letter “A” in Code column.
59 22-23 486-281 Add letter “G” in Code column.

59 22- Add Code “E” explanation: Used on PA-20 airplanes with serial numbers 20-1101 and up.

Date of Issue – March 1954 Page 1
