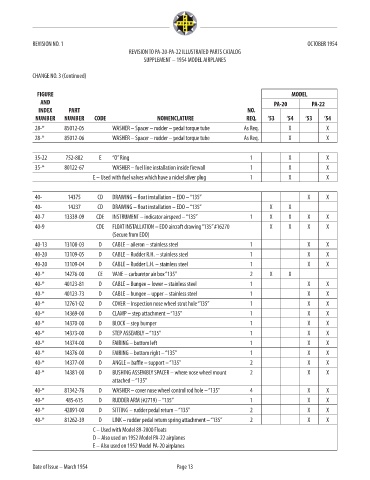

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54
28-* 85012-05 WASHER – Spacer – rudder – pedal torque tube As Req. X X
28-* 85012-06 WASHER – Spacer – rudder – pedal torque tube As Req. X X

35-22 752-882 E “O” Ring 1 X X
35-* 80122-67 WASHER – fuel line installation inside firewall 1 X X
E – Used with fuel valves which have a nickel silver plug 1 X X

40- 14375 CD DRAWING – float installation – EDO – “135” X X
40- 14237 CD DRAWING – float installation – EDO – “135” X X
40-7 13339-09 CDE INSTRUMENT – indicator airspeed – “135” 1 X X X X
40-9 CDE FLOAT INSTALLATION – EDO aircraft drawing “135” #16270 X X X X
(Secure from EDO)
40-13 13108-03 D CABLE – aileron – stainless steel 1 X X
40-20 13109-05 D CABLE – Rudder R.H. – stainless steel 1 X X
40-20 13109-04 D CABLE – Rudder L.H. – stainless steel 1 X X
40-* 14276-00 CE VANE – carburetor air box “135” 2 X X
40-* 40123-81 D CABLE – Bungee – lower – stainless steel 1 X X
40-* 40123-73 D CABLE – bungee – upper – stainless steel 1 X X
40-* 12761-02 D COVER – Inspection nose wheel strut hole “135” 1 X X
40-* 14369-00 D CLAMP – step attachment – “135” 1 X X
40-* 14370-00 D BLOCK – step bumper 1 X X
40-* 14373-00 D STEP ASSEMBLY – “135” 1 X X
40-* 14374-00 D FAIRING – bottom left 1 X X
40-* 14376-00 D FAIRING – bottom right – “135” 1 X X
40-* 14377-00 D ANGLE – baffle – support – “135” 2 X X
40-* 14381-00 D BUSHING ASSEMBLY SPACER – where nose wheel mount 2 X X
attached – “135”
40-* 81342-76 D WASHER – cover nose wheel control rod hole – “135” 4 X X
40-* 485-615 D RUDDER ARM (#2719) – “135” 1 X X
40-* 42891-00 D SITTING – rudder pedal return – “135” 2 X X
40-* 81262-39 D LINK – rudder pedal return spring attachment – “135” 2 X X
C – Used with Model 89-2000 Floats
D – Also used on 1952 Model PA-22 airplanes
E – Also used on 1952 Model PA-20 airplanes

Date of Issue – March 1954 Page 13
