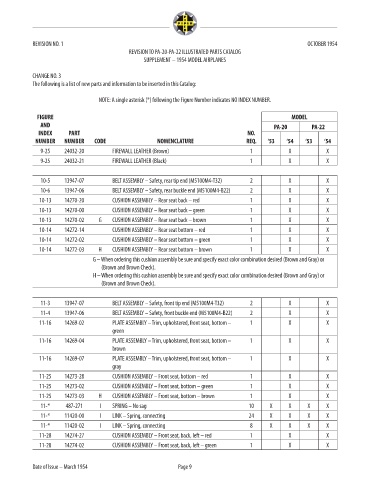

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3
The following is a list of new parts and information to be inserted in this Catalog:

NOTE: A single asterisk (*) following the Figure Number indicates NO INDEX NUMBER.

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54
9-25 24032-20 FIREWALL LEATHER (Brown) 1 X X
9-25 24032-21 FIREWALL LEATHER (Black) 1 X X

10-5 13947-07 BELT ASSEMBLY – Safety, rear tip end (M5100M4-T32) 2 X X
10-6 13947-06 BELT ASSEMBLY – Safety, rear buckle end (M5100M4-B22) 2 X X
10-13 14270-20 CUSHION ASSEMBLY – Rear seat back – red 1 X X
10-13 14270-00 CUSHION ASSEMBLY – Rear seat back – green 1 X X
10-13 14270-02 G CUSHION ASSEMBLY – Rear seat back – brown 1 X X
10-14 14272-14 CUSHION ASSEMBLY – Rear seat bottom – red 1 X X

10-14 14272-02 CUSHION ASSEMBLY – Rear seat bottom – green 1 X X
10-14 14272-03 H CUSHION ASSEMBLY – Rear seat bottom – brown 1 X X
G – When ordering this cushion assembly be sure and specify exact color combination desired (Brown and Gray) or
(Brown and Brown Check).
H – When ordering this cushion assembly be sure and specify exact color combination desired (Brown and Gray) or
(Brown and Brown Check).

11-3 13947-07 BELT ASSEMBLY – Safety, front tip end (M5100M4-T32) 2 X X
11-4 13947-06 BELT ASSEMBLY – Safety, front buckle end (M5100M4-B22) 2 X X
11-16 14269-02 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom – 1 X X
green
11-16 14269-04 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom – 1 X X
brown
11-16 14269-07 PLATE ASSEMBLY – Trim, upholstered, front seat, bottom – 1 X X
gray
11-25 14273-28 CUSHION ASSEMBLY – Front seat, bottom – red 1 X X
11-25 14273-02 CUSHION ASSEMBLY – Front seat, bottom – green 1 X X
11-25 14273-03 H CUSHION ASSEMBLY – Front seat, bottom – brown 1 X X
11-* 487-271 I SPRING – No sag 10 X X X X
11-* 11420-00 I LINK – Spring, connecting 24 X X X X
11-* 11420-02 I LINK – Spring, connecting 8 X X X X
11-28 14274-27 CUSHION ASSEMBLY – Front seat, back, left – red 1 X X
11-28 14274-02 CUSHION ASSEMBLY – Front seat, back, left – green 1 X X

Date of Issue – March 1954 Page 9
