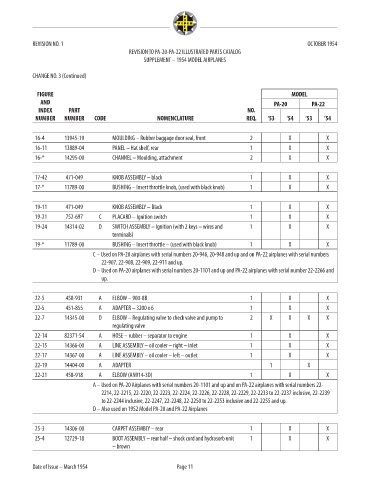

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54

16-4 13945-19 MOULDING – Rubber baggage door seal, front 2 X X
16-11 13889-04 PANEL – Hat shelf, rear 1 X X
16-* 14295-00 CHANNEL – Moulding, attachment 2 X X

17-42 471-049 KNOB ASSEMBLY – black 1 X X
17-* 11789-00 BUSHING – Insert throttle knob, (used with black knob) 1 X X

19-11 471-049 KNOB ASSEMBLY – Black 1 X X
19-21 752-697 C PLACARD – Ignition switch 1 X X
19-24 14314-02 D SWITCH ASSEMBLY – Ignition (with 2 keys – wires and 1 X X
terminals)
19-* 11789-00 BUSHING – Insert throttle – (used with black knob) 1 X X
C – Used on PA-20 airplanes with serial numbers 20-946, 20-948 and up and on PA-22 airplanes with serial numbers
22-907, 22-908, 22-909, 22-911 and up.
D – Used on PA-20 airplanes with serial numbers 20-1101 and up and PA-22 airplanes with serial number 22-2266 and
up.

22-5 458-931 A ELBOW – 900-8B 1 X X
22-5 451-855 A ADAPTER – 3200 x 6 1 X X
22-7 14345-00 D ELBOW – Regulating valve to check valve and pump to 2 X X X X
regulating valve
22-14 82371-54 A HOSE – rubber – separator to engine 1 X X
22-15 14366-00 A LINE ASSEMBLY – oil cooler – right – inlet 1 X X
22-17 14367-00 A LINE ASSEMBLY – oil cooler – left – outlet 1 X X
22-19 14404-00 A ADAPTER 1 X
22-21 458-918 A ELBOW (AN914-3D) 1 X X
A – Used on PA-20 Airplanes with serial numbers 20-1101 and up and on PA-22 airplanes with serial numbers 22-
2214, 22-2215, 22-2220, 22-2223, 22-2224, 22-2226, 22-2228, 22-2229, 22-2233 to 22-2237 inclusive, 22-2239
to 22-2244 inclusive, 22-2247, 22-2248, 22-2250 to 22-2253 inclusive and 22-2255 and up.
D – Also used on 1952 Model PA-20 and PA-22 Airplanes

25-3 14306-00 CARPET ASSEMBLY – rear 1 X X
25-4 12729-18 BOOT ASSEMBLY – rear half – shock cord and hydrasorb unit 1 X X
– brown

Date of Issue – March 1954 Page 11
