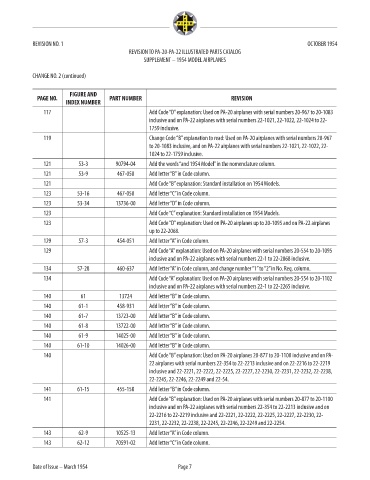

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 2 (continued)

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
117 Add Code “D” explanation: Used on PA-20 airplanes with serial numbers 20-967 to 20-1083
inclusive and on PA-22 airplanes with serial numbers 22-1021, 22-1022, 22-1024 to 22-
1759 inclusive.
119 Change Code “B” explanation to read: Used on PA-20 airplanes with serial numbers 20-967
to 20-1083 inclusive, and on PA-22 airplanes with serial numbers 22-1021, 22-1022, 22-
1024 to 22-1759 inclusive.
121 53-3 90794-04 Add the words “and 1954 Model” in the nomenclature column.
121 53-9 467-050 Add letter “B” in Code column.
121 Add Code “B” explanation: Standard installation on 1954 Models.
123 53-16 467-050 Add letter “C” in Code column.
123 53-34 13736-00 Add letter “D” in Code column.
123 Add Code “C” explanation: Standard installation on 1954 Models.
123 Add Code “D” explanation: Used on PA-20 airplanes up to 20-1095 and on PA-22 airplanes
up to 22-2068.
129 57-3 454-051 Add letter “A” in Code column.
129 Add Code “A” explanation: Used on PA-20 airplanes with serial numbers 20-554 to 20-1095
inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-2068 inclusive.
134 57-28 460-637 Add letter “A” in Code column, and change number “1” to “2” in No. Req. column.
134 Add Code “A” explanation: Used on PA-20 airplanes with serial numbers 20-554 to 20-1102
inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-2265 inclusive.
140 61 13724 Add letter “B” in Code column.
140 61-1 458-931 Add letter “B” in Code column.
140 61-7 13723-00 Add letter “B” in Code column.
140 61-8 13722-00 Add letter “B” in Code column.
140 61-9 14025-00 Add letter “B” in Code column.
140 61-10 14026-00 Add letter “B” in Code column.
140 Add Code “B” explanation: Used on PA-20 airplanes 20-877 to 20-1100 inclusive and on PA-
22 airplanes with serial numbers 22-354 to 22-2213 inclusive and on 22-2216 to 22-2219
inclusive and 22-2221, 22-2222, 22-2225, 22-2227, 22-2230, 22-2231, 22-2232, 22-2238,
22-2245, 22-2246, 22-2249 and 22-54.
141 61-15 455-158 Add letter “B” in Code column.
141 Add Code “B” explanation: Used on PA-20 airplanes with serial numbers 20-877 to 20-1100
inclusive and on PA-22 airplanes with serial numbers 22-354 to 22-2213 inclusive and on
22-2216 to 22-2219 inclusive and 22-2221, 22-2222, 22-2225, 22-2227, 22-2230, 22-
2231, 22-2232, 22-2238, 22-2245, 22-2246, 22-2249 and 22-2254.
143 62-9 10525-13 Add letter “A” in Code column.
143 62-12 70591-02 Add letter “C” in Code column.

Date of Issue – March 1954 Page 7
