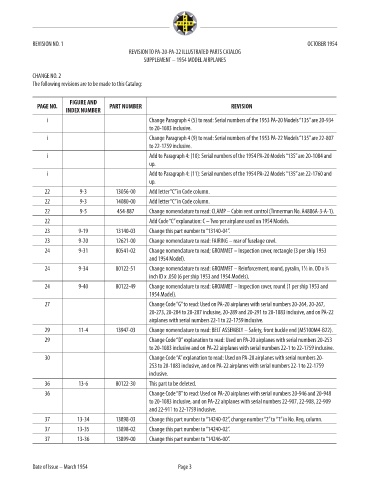

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 2
The following revisions are to be made to this Catalog:

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
i Change Paragraph 4 (5) to read: Serial numbers of the 1953 PA-20 Models “135” are 20-934
to 20-1083 inclusive.
i Change Paragraph 4 (9) to read: Serial numbers of the 1953 PA-22 Models “135” are 22-807
to 22-1759 inclusive.
i Add to Paragraph 4: (10): Serial numbers of the 1954 PA-20 Models “135” are 20-1084 and
up.
i Add to Paragraph 4: (11): Serial numbers of the 1954 PA-22 Models “135” are 22-1760 and
up.
22 9-3 13056-00 Add letter “C” in Code column.
22 9-3 14080-00 Add letter “C” in Code column.
22 9-5 454-887 Change nomenclature to read: CLAMP – Cabin vent control (Tinnerman No. A4886A-3-A-1).
22 Add Code “C” explanation: C – Two per airplane used on 1954 Models.
23 9-19 13140-03 Change this part number to “13140-04”.
23 9-20 12621-00 Change nomenclature to read: FAIRING – rear of fuselage cowl.
24 9-31 80541-02 Change nomenclature to read; GROMMET – Inspection cover, rectangle (3 per ship 1953
and 1954 Model).
24 9-34 80122-51 Change nomenclature to read: GROMMET – Reinforcement, round, pyralin, 1 ⁄2 in. OD x ⁄4
3
1
inch ID x .050 (6 per ship 1953 and 1954 Models).
24 9-40 80122-49 Change nomenclature to read: GROMMET – Inspection cover, round (1 per ship 1953 and
1954 Model).
27 Change Code “G” to read: Used on PA-20 airplanes with serial numbers 20-264, 20-267,
20-273, 20-284 to 20-287 inclusive, 20-289 and 20-291 to 20-1083 inclusive, and on PA-22
airplanes with serial numbers 22-1 to 22-1759 inclusive.
29 11-4 13947-03 Change nomenclature to read: BELT ASSEMBLY – Safety, front buckle end (M5100M4-B22).
29 Change Code “D” explanation to read: Used on PA-20 airplanes with serial numbers 20-253
to 20-1083 inclusive and on PA-22 airplanes with serial numbers 22-1 to 22-1759 inclusive.
30 Change Code “A” explanation to read: Used on PA-20 airplanes with serial numbers 20-
253 to 20-1083 inclusive, and on PA-22 airplanes with serial numbers 22-1 to 22-1759
inclusive.
36 13-6 80122-30 This part to be deleted.
36 Change Code “B” to read: Used on PA-20 airplanes with serial numbers 20-946 and 20-948
to 20-1083 inclusive, and on PA-22 airplanes with serial numbers 22-907, 22-908, 22-909
and 22-911 to 22-1759 inclusive.
37 13-34 13898-03 Change this part number to “14240-02”, change number “2” to “1” in No. Req. column.
37 13-35 13898-02 Change this part number to “14240-02”.
37 13-36 13899-00 Change this part number to “14246-00”.

Date of Issue – March 1954 Page 3
