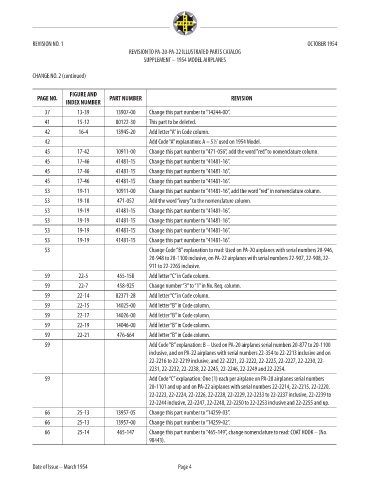

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 2 (continued)

FIGURE AND
PAGE NO. PART NUMBER REVISION
INDEX NUMBER
37 13-39 13907-00 Change this part number to “14244-00”.
41 15-12 80122-30 This part to be deleted.
42 16-4 13945-20 Add letter “A” in Code column.
42 Add Code “A” explanation: A – 5 ⁄2’ used on 1954 Model.
1
45 17-42 10911-00 Change this part number to “471-056”, add the word “red” to nomenclature column.
45 17-46 41481-15 Change this part number to “41481-16”.
45 17-46 41481-15 Change this part number to “41481-16”.
45 17-46 41481-15 Change this part number to “41481-16”.
53 19-11 10911-00 Change this part number to “41481-16”, add the word “red” in nomenclature column.
53 19-18 471-052 Add the word “ivory” to the nomenclature column.

53 19-19 41481-15 Change this part number to “41481-16”.
53 19-19 41481-15 Change this part number to “41481-16”.
53 19-19 41481-15 Change this part number to “41481-16”.
53 19-19 41481-15 Change this part number to “41481-16”.
53 Change Code “B” explanation to read: Used on PA-20 airplanes with serial numbers 20-946,
20-948 to 20-1100 inclusive, on PA-22 airplanes with serial numbers 22-907, 22-908, 22-
911 to 22-2265 inclusive.
59 22-5 455-158 Add letter “C” in Code column.
59 22-7 458-925 Change number “3” to “1” in No. Req. column.
59 22-14 82371-28 Add letter “C” in Code column.
59 22-15 14025-00 Add letter “B” in Code column.
59 22-17 14026-00 Add letter “B” in Code column.
59 22-19 14046-00 Add letter “B” in Code column.
59 22-21 476-664 Add letter “B” in Code column.
59 Add Code “B” explanation: B – Used on PA-20 airplanes serial numbers 20-877 to 20-1100
inclusive, and on PA-22 airplanes with serial numbers 22-354 to 22-2213 inclusive and on
22-2216 to 22-2219 inclusive, and 22-2221, 22-2222, 22-2225, 22-2227, 22-2230, 22-
2231, 22-2232, 22-2238, 22-2245, 22-2246, 22-2249 and 22-2254.
59 Add Code “C” explanation: One (1) each per airplane on PA-20 airplanes serial numbers
20-1101 and up and on PA-22 airplanes with serial numbers 22-2214, 22-2215, 22-2220,
22-2223, 22-2224, 22-2226, 22-2228, 22-2229, 22-2233 to 22-2237 inclusive, 22-2239 to
22-2244 inclusive, 22-2247, 22-2248, 22-2250 to 22-2253 inclusive and 22-2255 and up.
66 25-13 13957-05 Change this part number to “14259-03”.
66 25-13 13957-00 Change this part number to “14259-02”.
66 25-14 465-147 Change this part number to “465-149”, change nomenclature to read: COAT HOOK – (No.
98443).

Date of Issue – March 1954 Page 4
