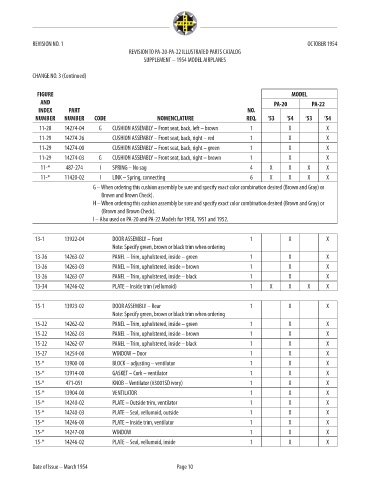

REVISION NO. 1 OCTOBER 1954
REVISION TO PA-20-PA-22 ILLUSTRATED PARTS CATALOG
SUPPLEMENT – 1954 MODEL AIRPLANES

CHANGE NO. 3 (Continued)

FIGURE MODEL
AND PA-20 PA-22
INDEX PART NO.
NUMBER NUMBER CODE NOMENCLATURE REQ. ‘53 ‘54 ‘53 ‘54
11-28 14274-04 G CUSHION ASSEMBLY – Front seat, back, left – brown 1 X X
11-29 14274-26 CUSHION ASSEMBLY – Front seat, back, right – red 1 X X
11-29 14274-00 CUSHION ASSEMBLY – Front seat, back, right – green 1 X X
11-29 14274-03 G CUSHION ASSEMBLY – Front seat, back, right – brown 1 X X
11-* 487-274 I SPRING – No sag 4 X X X X
11-* 11420-02 I LINK – Spring, connecting 6 X X X X
G – When ordering this cushion assembly be sure and specify exact color combination desired (Brown and Gray) or
Brown and Brown Check).
H – When ordering this cushion assembly be sure and specify exact color combination desired (Brown and Gray) or
(Brown and Brown Check).
I – Also used on PA-20 and PA-22 Models for 1950, 1951 and 1952.

13-1 13922-04 DOOR ASSEMBLY – Front 1 X X
Note: Specify green, brown or black trim when ordering
13-26 14263-02 PANEL – Trim, upholstered, inside – green 1 X X
13-26 14263-03 PANEL – Trim, upholstered, inside – brown 1 X X
13-26 14263-07 PANEL – Trim, upholstered, inside – black 1 X X
13-34 14246-02 PLATE – Inside trim (vellumoid) 1 X X X X

15-1 13923-02 DOOR ASSEMBLY – Rear 1 X X
Note: Specify green, brown or black trim when ordering
15-22 14262-02 PANEL – Trim, upholstered, inside – green 1 X X
15-22 14262-03 PANEL – Trim, upholstered, inside – brown 1 X X
15-22 14262-07 PANEL – Trim, upholstered, inside – black 1 X X
15-27 14254-00 WINDOW – Door 1 X X
15-* 13900-00 BLOCK – adjusting – ventilator 1 X X
15-* 13914-00 GASKET – Cork – ventilator 1 X X
15-* 471-051 KNOB – Ventilator (#3001SD ivory) 1 X X
15-* 13904-00 VENTILATOR 1 X X
15-* 14240-02 PLATE – Outside trim, ventilator 1 X X
15-* 14240-03 PLATE – Seal, vellumoid, outside 1 X X
15-* 14246-00 PLATE – Inside trim, ventilator 1 X X
15-* 14247-00 WINDOW 1 X X
15-* 14246-02 PLATE – Seal, vellumoid, inside 1 X X

Date of Issue – March 1954 Page 10
