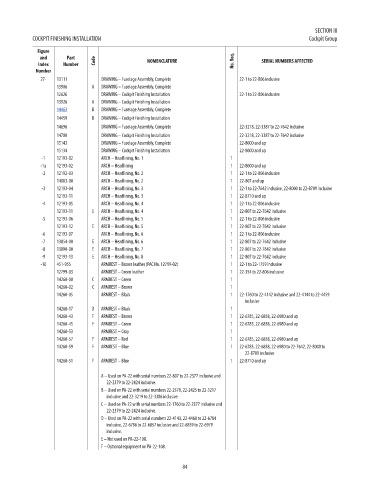

P. 96

SECTION III
            COCKPIT FINISHING INSTALLATION                                                             Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              27-   13111         DRAWING – Fuselage Assembly, Complete         22-1 to 22-806 inclusive                          NM!
                    13906      A  DRAWING – Fuselage Assembly, Complete                                                           NM!
                    12626         DRAWING – Cockpit Finishing Installation      22-1 to 22-806 inclusive                          NM!
                    13926      A  DRAWING – Cockpit Finishing Installation                                                        NM!
                    14463      B  DRAWING – Fuselage Assembly, Complete                                                           9.5
                    14459      B  DRAWING – Cockpit Finishing Installation                                                        NM!
                    14696         DRAWING – Fuselage Assembly, Complete         22-3218, 22-3387 to 22-7642 inclusive             NM!
                    14700         DRAWING – Cockpit Finishing Installation      22-3218, 22-3387 to 22-7642 inclusive             NM!
                    15143         DRAWING – Fuselage Assembly, Complete         22-8000 and up                                    NM!
                    15134         DRAWING – Cockpit Finishing Installation      22-8000 and up                                    NM!
               -1   12193-02      ARCH – Headlining, No. 1                   1                                                    NM!
              -1a   12193-02      ARCH – Headlining                          1  22-8000 and up                                    NM!
               -2   12192-03      ARCH – Headlining, No. 2                   1  22-1 to 22-806 inclusive                          NM!
                    14083-00      ARCH – Headlining, No. 2                   1  22-807 and up                                     NM!
               -3   12193-04      ARCH – Headlining, No. 3                   1  22-1 to 22-7642 inclusive, 22-8000 to 22-8709 inclusive  NM!
                    12193-11      ARCH – Headlining, No. 3                   1  22-8710 and up                                    NM!
               -4   12193-05      ARCH – Headlining, No. 4                   1  22-1 to 22-806 inclusive                          NM!
                    12193-11   E  ARCH – Headlining, No. 4                   1  22-807 to 22-7642 inclusive                       NM!
               -5   12193-06      ARCH – Headlining, No. 5                   1  22-1 to 22-806 inclusive                          NM!
                    12193-12   E  ARCH – Headlining, No. 5                   1  22-807 to 22-7642 inclusive                       NM!
               -6   12193-07      ARCH – Headlining, No. 6                   1  22-1 to 22-806 inclusive                          NM!
               -7   13854-00   E  ARCH – Headlining, No. 6                   1  22-807 to 22-7642 inclusive                       NM!
               -8   13890-00   E  ARCH – Headlining, No. 7                   1  22-807 to 22-7642 inclusive                       NM!
               -9   12193-13   E  ARCH – Headlining, No. 8                   1  22-807 to 22-7642 inclusive                       NM!
              -10   451-955       ARMREST – Brown leather (PAC No. 12799-02)  1  22-1 to 22-1759 inclusive                        NM!
                    12799-03      ARMREST – Green leather                    1  22-354 to 22-806 inclusive                        NM!
                    14260-00   C  ARMREST – Green                            1                                                    NM!
                    14260-02   C  ARMREST – Brown                            1                                                    NM!
                    14260-05      ARMREST – Black                            1  22-1760 to 22-4142 inclusive and 22-4144 to 22-4459   NM!
                                                                                  inclusive
                    14260-17   D  ARMREST – Black                            1                                                    NM!
                    14260-43    F  ARMREST – Brown                           1  22-6785, 22-6858, 22-6980 and up                  NM!
                    14260-45    F  ARMREST – Green                           1  22-6785, 22-6858, 22-6980 and up                  NM!
                    14260-53      ARMREST – Gray                             1                                                    NM!
                    14260-57    F  ARMREST – Red                             1  22-6785, 22-6858, 22-6980 and up                  NM!
                    14260-59    F  ARMREST – Blue                            1  22-6785, 22-6858, 22-6980 to 22-7642, 22-8000 to   NM!
                                                                                  22-8709 inclusive
                    14260-51    F  ARMREST – Blue                            1  22-8710 and up                                    NM!

                                  A – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  B – Used on PA-22 with serial numbers 22-2378, 22-2425 to 22-3217
                                    inclusive and 22-3219 to 22-3386 inclusive.
                                  C – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  D – Used on PA-22 with serial numbers 22-4143, 22-4460 to 22-6784
                                    inclusive, 22-6786 to 22-6857 inclusive and 22-6859 to 22-6979
                                    inclusive.
                                  E – Not used on PA-22-108.
                                  F – Optional equipment on PA-22-108.



                                                             84
