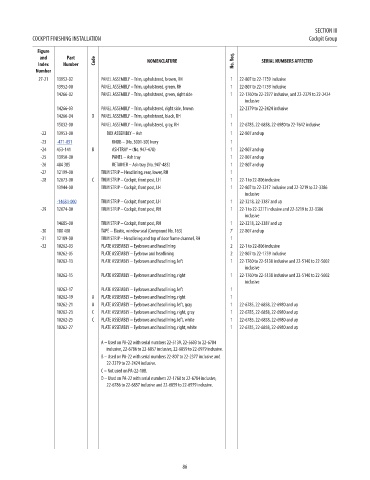

P. 98

SECTION III
            COCKPIT FINISHING INSTALLATION                                                             Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              27-21  13952-02     PANEL ASSEMBLY – Trim, upholstered, brown, RH  1  22-807 to 22-1759 inclusive                   NM!
                    13952-00      PANEL ASSEMBLY – Trim, upholstered, green, RH  1  22-807 to 22-1759 inclusive                   NM!
                    14266-02      PANEL ASSEMBLY – Trim, upholstered, green, right side  1  22-1760 to 22-2377 inclusive, and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    14266-03      PANEL ASSEMBLY – Trim, upholstered, right side, brown  22-2379 to 22-2424 inclusive             NM!
                    14266-04   D  PANEL ASSEMBLY – Trim, upholstered, black, RH  1                                                NM!
                    15032-00      PANEL ASSEMBLY – Trim, upholstered, gray, RH  1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive  NM!
              -22   13953-00        BOX ASSEMBLY – Ash                       1  22-807 and up                                     NM!
              -23   -471-051          KNOB – (No. 3001-SD) Ivory             1                                                    2.19
              -24   453-141    B      ASH TRAY – (No. 947-478)               1  22-807 and up                                     NM!
              -25   13950-00          PANEL – Ash tray                       1  22-807 and up                                     NM!
              -26   484 385           RETAINER – Ash tray (No. 947-483)      1  22-807 and up                                     NM!
              -27   12199-00      TRIM STRIP – Headlining, rear, lower, RH   1                                                    NM!
              -28   12673-00   C  TRIM STRIP – Cockpit, front post, LH       1  22-1 to 22-806 inclusive                          NM!
                    13944-00      TRIM STRIP – Cockpit, front post, LH       1  22-807 to 22-3217 inclusive and 22-3219 to 22-3386   NM!
                                                                                  inclusive
                    -14684-000    TRIM STRIP – Cockpit, front post, LH       1  22-3218, 22-3387 and up                           93.05
              -29   12674-00      TRIM STRIP – Cockpit, front post, RH       1  22-1 to 22-3217 inclusive and 22-3219 to 22-3386   NM!
                                                                                  inclusive
                    14685-00      TRIM STRIP – Cockpit, front post, RH       1  22-3218, 22-3387 and up                           NM!
              -30   180 400       TAPE – Elastic, window seal (Compound No. 163)  7’  22-807 and up                               NM!
              -31   12189-00      TRIM STRIP – Headlining and top of door frame channel, RH  1                                    NM!
              -32   10262-03      PLATE ASSEMBLY – Eyebrows and headlining   2  22-1 to 22-806 inclusive                          NM!
                    10262-05      PLATE ASSEMBLY – Eyebrow and headlining    2  22-807 to 22-1759 inclusive                       NM!
                    10262-13      PLATE ASSEMBLY – Eyebrows and headlining, left  1  22-1760 to 22-5138 inclusive and 22-5140 to 22-5602   NM!
                                                                                  inclusive
                    10262-15      PLATE ASSEMBLY – Eyebrows and headlining, right  1  22-1760 to 22-5138 inclusive and 22-5140 to 22-5602   NM!
                                                                                  inclusive
                    10262-17      PLATE ASSEMBLY – Eyebrows and headlining, left  1                                               NM!
                    10262-19   A  PLATE ASSEMBLY – Eyebrows and headlining, right  1                                              NM!
                    10262-21   A  PLATE ASSEMBLY – Eyebrows and headlining, left, gray  1  22-6785, 22-6858, 22-6980 and up       NM!
                    10262-23   C  PLATE ASSEMBLY – Eyebrows and headlining, right, gray  1  22-6785, 22-6858, 22-6980 and up      NM!
                    10262-25   C  PLATE ASSEMBLY – Eyebrows and headlining, left, white  1  22-6785, 22-6858, 22-6980 and up      NM!
                    10262-27      PLATE ASSEMBLY – Eyebrows and headlining, right, white  1  22-6785, 22-6858, 22-6980 and up     NM!

                                  A – Used on PA-22 with serial numbers 22-5139, 22-5603 to 22-6784
                                    inclusive, 22-6786 to 22-6857 inclusive, 22-6859 to 22-6979 inclusive.
                                  B – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  C – Not used on PA-22-108.
                                  D – Used on PA-22 with serial numbers 22-1760 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.















                                                             86
