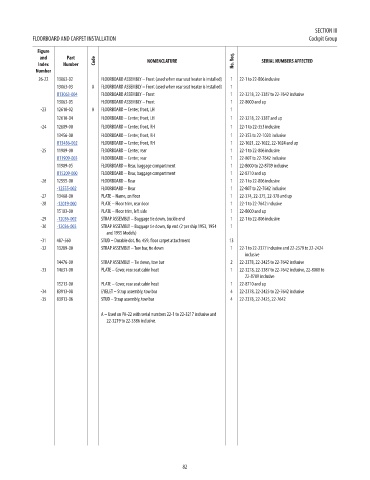

SECTION III
FLOORBOARD AND CARPET INSTALLATION Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
26-22 13063-02 FLOORBOARD ASSEMBLY – Front (used when rear seat heater is installed) 1 22-1 to 22-806 inclusive NM!
13063-03 A FLOORBOARD ASSEMBLY – Front (used when rear seat heater is installed) 1 NM!
U13063-004 FLOORBOARD ASSEMBLY – Front 1 22-3218, 22-3387 to 22-7642 inclusive 242.55
13063-05 FLOORBOARD ASSEMBLY – Front 1 22-8000 and up NM!
-23 12610-02 A FLOORBOARD – Center, front, LH 1 NM!
12610-04 FLOORBOARD – Center, front, LH 1 22-3218, 22-3387 and up NM!
-24 12609-00 FLOORBOARD – Center, front, RH 1 22-1 to 22-353 inclusive NM!
13456-00 FLOORBOARD – Center, front, RH 1 22-353 to 22-1020 inclusive NM!
U13456-002 FLOORBOARD – Center, front, RH 1 22-1021, 22-1022, 22-1024 and up 226.61
-25 11909-00 FLOORBOARD – Center, rear 1 22-1 to 22-806 inclusive NM!
U11909-003 FLOORBOARD – Center, rear 1 22-807 to 22-7642 inclusive 121.09
11909-05 FLOORBOARD – Rear, baggage compartment 1 22-8000 to 22-8709 inclusive NM!
U15209-000 FLOORBOARD – Rear, baggage compartment 1 22-8710 and up 196.6
-26 12555-00 FLOORBOARD – Rear 1 22-1 to 22-806 inclusive NM!
-12555-002 FLOORBOARD – Rear 1 22-807 to 22-7642 inclusive 88.18
-27 13468-00 PLATE – Name, on floor 1 22-374, 22-375, 22-378 and up NM!
-28 -12019-000 PLATE – Floor trim, rear door 1 22-1 to 22-7642 inclusive 15.92
15103-00 PLATE – Floor trim, left side 1 22-8000 and up NM!
-29 -12036-002 STRAP ASSEMBLY – Baggage tie down, buckle end 1 22-1 to 22-806 inclusive 19.93
-30 -12036-003 STRAP ASSEMBLY – Baggage tie down, tip end (2 per ship 1953, 1954 1 20.92
and 1955 Models)
-31 487-560 STUD – Durable dot, No. 459, floor carpet attachment 13 NM!
-32 13289-00 STRAP ASSEMBLY – Tow bar, tie down 1 22-1 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
14476-00 STRAP ASSEMBLY – Tie down, tow bar 2 22-2378, 22-2425 to 22-7642 inclusive NM!
-33 14631-00 PLATE – Cover, rear seat cabin heat 1 22-3218, 22-3387 to 22-7642 inclusive, 22-8000 to NM!
22-8709 inclusive
15213-00 PLATE – Cover, rear seat cabin heat 1 22-8710 and up NM!
-34 83913-08 EYELET – Strap assembly, tow bar 4 22-2378, 22-2425 to 22-7642 inclusive NM!
-35 83913-06 STUD – Strap assembly, tow bar 4 22-2378, 22-2425, 22-7642 NM!

A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
