P. 91

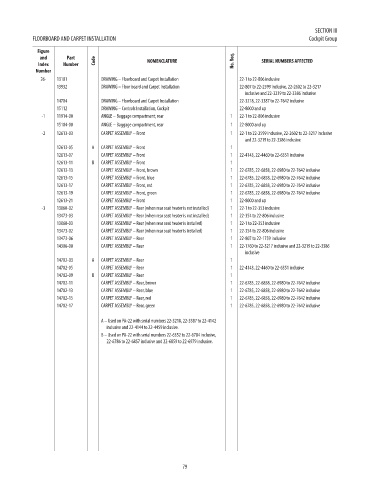

SECTION III
            FLOORBOARD AND CARPET INSTALLATION                                                         Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              26-   13101         DRAWING – Floorboard and Carpet Installation  22-1 to 22-806 inclusive                          NM!
                    13932         DRAWING – Floor board and Carpet Installation  22-807 to 22-2599 inclusive, 22-2602 to 22-3217   NM!
                                                                                  inclusive and 22-3219 to 22-3386 inclusive
                    14704         DRAWING – Floorboard and Carpet Installation  22-3218, 22-3387 to 22-7642 inclusive             NM!
                    15112         DRAWING – Controls Installation, Cockpit      22-8000 and up                                    NM!
               -1   11914-00      ANGLE – Baggage compartment, rear          1  22-1 to 22-806 inclusive                          NM!
                    15104-00      ANGLE – Baggage compartment, rear          1  22-8000 and up                                    NM!
               -2   12613-03      CARPET ASSEMBLY – Front                    1  22-1 to 22-2599 inclusive, 22-2602 to 22-3217 inclusive   NM!
                                                                                  and 22-3219 to 22-3386 inclusive
                    12613-05   A  CARPET ASSEMBLY – Front                    1                                                    NM!
                    12613-07      CARPET ASSEMBLY – Front                    1  22-4143, 22-4460 to 22-6351 inclusive             NM!
                    12613-11   B  CARPET ASSEMBLY – Front                    1                                                    NM!
                    12613-13      CARPET ASSEMBLY – Front, brown             1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    12613-15      CARPET ASSEMBLY – Front, blue              1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    12613-17      CARPET ASSEMBLY – Front, red               1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    12613-19      CARPET ASSEMBLY – Front, green             1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    12613-21      CARPET ASSEMBLY – Front                    1  22-8000 and up                                    NM!
               -3   13060-02      CARPET ASSEMBLY – Rear (when rear seat heater is not installed)  1  22-1 to 22-353 inclusive    NM!
                    13473-03      CARPET ASSEMBLY – Rear (when rear seat heater is not installed)  1  22-354 to 22-806 inclusive  NM!
                    13060-03      CARPET ASSEMBLY – Rear (when rear seat heater is installed)  1  22-1 to 22-353 inclusive        NM!
                    13473-02      CARPET ASSEMBLY – Rear (when rear seat heater is installed)  1  22-354 to 22-806 inclusive      NM!
                    13473-06      CARPET ASSEMBLY – Rear                     1  22-807 to 22-1759 inclusive                       NM!
                    14306-00      CARPET ASSEMBLY – Rear                     1  22-1760 to 22-3217 inclusive and 22-3219 to 22-3386   NM!
                                                                                  inclusive
                    14702-03   A  CARPET ASSEMBLY – Rear                     1                                                    NM!
                    14702-05      CARPET ASSEMBLY – Rear                     1  22-4143, 22-4460 to 22-6351 inclusive             NM!
                    14702-09   B  CARPET ASSEMBLY – Rear                     1                                                    NM!
                    14702-11      CARPET ASSEMBLY – Rear, brown              1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    14702-13      CARPET ASSEMBLY – Rear, blue               1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    14702-15      CARPET ASSEMBLY – Rear, red                1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    14702-17      CARPET ASSEMBLY – Rear, green              1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!


                                  A – Used on PA-22 with serial numbers 22-3218, 22-3387 to 22-4142
                                    inclusive and 22-4144 to 22-4459 inclusive.
                                  B – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.
























                                                             79
