LITTER INSTALLATION                                                                          SECTION III
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                    Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              25-   12733         DRAWING                                       22-1 to 22-806 inclusive                          NM!
                    14187         DRAWING                                       22-807 and up                                     NM!
               -1   751-161       GRAN LITTER                                1                                                    NM!
               -2   12732-04      LITTER STRAP ASSEMBLY                      1                                                    NM!
               -3   12732-03      LITTER STRAP ASSEMBLY                      1                                                    NM!
               -4   12732-02      LITTER STRAP ASSEMBLY – Double             1  22-1 to 22-806 inclusive                          NM!
                    14186-00      LITTER STRAP ASSEMBLY                      1  22-807 and up                                     NM!
               -5   12730-02      LITTER FITTING – Strap assembly            2                                                    NM!
               -6   80002-41      LITTER CLAMP                               2                                                    NM!
               -7   12732-05      LITTER STRAP ASSEMBLY                      1  22-807 and up                                     NM!

















                                                                  7


                                                     1

                                                       4











                                                                                                3
                                   6
                                                                                  2










                                5

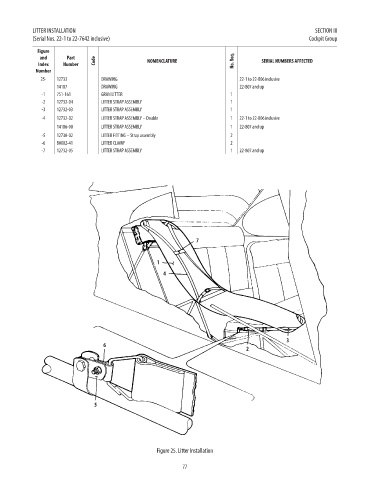

                                                     Figure 25. Litter Installation


                                                             77
