P. 85

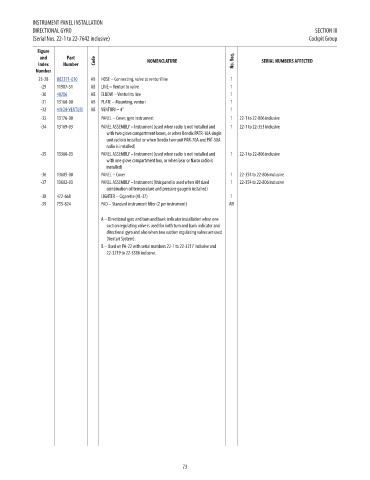

INSTRUMENT PANEL INSTALLATION
            DIRECTIONAL GYRO                                                                             SECTION III
            (Serial Nos. 22-1 to 22-7642 inclusive)                                                    Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              23-28  U82371-010  AB  HOSE – Connecting, valve to venturi line  1                                                  23.8
              -29   11987-51   AB  LINE – Venturi to valve                   1                                                    NM!
              -30   402X6      AB  ELBOW – Venturi to line                   1                                                    7.94
              -31   13160-00   AB  PLATE – Mounting, venturi                 1                                                    NM!
              -32   4INCH-VENTURI  AB  VENTURI – 4”                          1                                                    78.82
              -33   13176-00      PANEL – Cover, gyro instrument             1  22-1 to 22-806 inclusive                          NM!
              -34   13169-03      PANEL ASSEMBLY – Instrument (used when radio is not installed and   1  22-1 to 22-353 inclusive  NM!
                                    with two glove compartment boxes, or when Bendix PATR-10A single
                                    unit radio is installed or when Bendix two unit PAR-70A and PAT-50A
                                    radio is installed)
              -35   13360-03      PANEL ASSEMBLY – Instrument (used when radio is not installed and   1  22-1 to 22-806 inclusive  NM!
                                    with one glove compartment box, or when Lear or Narco radio is
                                    installed)
              -36   13605-00      PANEL – Cover                              1  22-354 to 22-806 inclusive                        NM!
              -37   13602-03      PANEL ASSEMBLY – Instrument (this panel is used when AN sized   1  22-354 to 22-806 inclusive   NM!
                                    combination oil temperature and pressure gauge is installed)
              -38   472-668       LIGHTER – Cigarette (#L-37)                1                                                    NM!
              -39   755-824       PAD – Standard instrument filter (2 per instrument)  AR                                         NM!

                                  A – Directional gyro and turn and bank indicator installation when one
                                    suction regulating valve is used for both turn and bank indicator and
                                    directional gyro and also when two suction regulating valves are used
                                    (Venturi System).
                                  B – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
                                    22-3219 to 22-3386 inclusive.










































                                                             73
