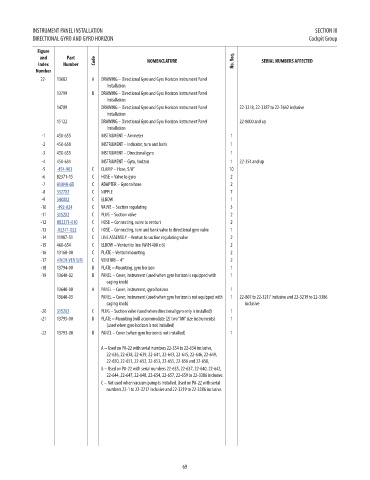

INSTRUMENT PANEL INSTALLATION SECTION III
DIRECTIONAL GYRO AND GYRO HORIZON Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
22- 13682 A DRAWING – Directional Gyro and Gyro Horizon Instrument Panel NM!
Installation
13799 B DRAWING – Directional Gyro and Gyro Horizon Instrument Panel NM!
Installation
14709 DRAWING – Directional Gyro and Gyro Horizon Instrument Panel 22-3218, 22-3387 to 22-7642 inclusive NM!
Installation
15122 DRAWING – Directional Gyro and Gyro Horizon Instrument Panel 22-8000 and up NM!
Installation
-1 450-655 INSTRUMENT – Ammeter 1 NM!
-2 450-658 INSTRUMENT – Indicator, turn and bank 1 NM!
-3 450-635 INSTRUMENT – Directional gyro 1 NM!
-4 450-634 INSTRUMENT – Gyro, horizon 1 22-354 and up NM!
-5 -454-903 C CLAMP – Hose, 5/8” 10 2.43
-6 82371-15 C HOSE – Valve to gyro 2 NM!
-7 AN840-6D C ADAPTER – Gyro to hose 2 11.96
-8 3327X2 C NIPPLE 7 2.64
-9 3400X2 C ELBOW 1 2.93
-10 -492-024 C VALVE – Suction regulating 3 24.95
-11 3152X2 C PLUG – Suction valve 2 1.42
-12 U82371-010 C HOSE – Connecting, valve to venturi 2 23.8
-13 -82371-022 C HOSE – Connecting, turn and bank valve to directional gyro valve 1 28.73
-14 11987-51 C LINE ASSEMBLY – Venturi to suction regulating valve 2 NM!
-15 460-654 C ELBOW – Venturi to line (W/H 400 x 6) 2 NM!
-16 13160-00 C PLATE – Venturi mounting 2 NM!
-17 4INCH-VENTURI C VENTURI – 4” 2 78.82
-18 13794-00 B PLATE – Mounting, gyro horizon 1 NM!
-19 13640-02 B PANEL – Cover, instrument (used when gyro horizon is equipped with 1 NM!
caging knob)
13640-00 A PANEL – Cover, instrument, gyro horizon 1 NM!
13640-03 PANEL – Cover, instrument (used when gyro horizon is not equipped with 1 22-807 to 22-3217 inclusive and 22-3219 to 22-3386 NM!
caging knob) inclusive
-20 3152X2 C PLUG – Suction valve (used when directional gyro only is installed) 1 1.42
-21 13795-00 B PLATE – Mounting (will accommodate (2) two “AN” size instruments) 1 NM!
(used when gyro horizon is not installed)
-22 13793-00 B PANEL – Cover (when gyro horizon is not installed) 1 NM!

A – Used on PA-22 with serial numbers 22-354 to 22-634 inclusive,
22-636, 22-638, 22-639, 22-641, 22-643, 22-645, 22-646, 22-649,
22-650, 22-651, 22-652, 22-653, 22-655, 22-656 and 22-658,
B – Used on PA-22 with serial numbers 22-635, 22-637, 22-640, 22-642,
22-644, 22-647, 22-648, 22-654, 22-657, 22-659 to 22-3386 inclusive.
C – Not used when vacuum pump is installed. Used on PA-22 with serial
numbers 22-1 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.

69
