P. 79

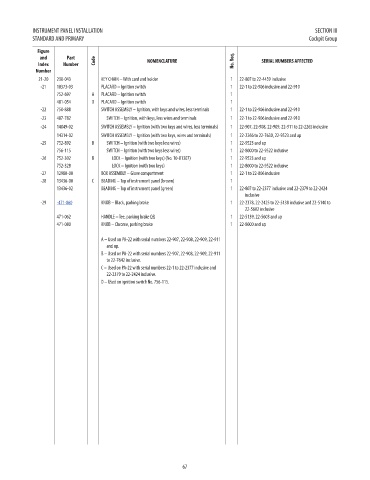

INSTRUMENT PANEL INSTALLATION                                                                SECTION III
            STANDARD AND PRIMARY                                                                       Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              21-20  230-043      KEY CHAIN – With card and holder           1  22-807 to 22-4459 inclusive                       NM!
              -21   10373-03      PLACARD – Ignition switch                  1  22-1 to 22-906 inclusive and 22-910               NM!
                    752-697    A  PLACARD – Ignition switch                  1                                                    NM!
                    481-054    D  PLACARD – Ignition switch                  1                                                    NM!
              -22   750-888       SWITCH ASSEMBLY – Ignition, with keys and wires, less terminals  1  22-1 to 22-906 inclusive and 22-910  NM!
              -23   487-782         SWITCH – Ignition, with keys, less wires and terminals  1  22-1 to 22-906 inclusive and 22-910  NM!
              -24   14049-02      SWITCH ASSEMBLY – Ignition (with two keys and wires, less terminals)  1  22-907, 22-908, 22-909, 22-911 to 22-2265 inclusive  NM!
                    14314-02      SWITCH ASSEMBLY – Ignition (with two keys, wires and terminals)  1  22-2266 to 22-7630, 22-9523 and up  NM!
              -25   752-892    B    SWITCH – Ignition (with two keys less wires)  1  22-9523 and up                               NM!
                    756-115         SWITCH – Ignition (with two keys less wires)  1  22-8000 to 22-9522 inclusive                 NM!
              -26   752-302    B      LOCK – Ignition (with two keys) (No. 10-81307)  1  22-9523 and up                           NM!
                    752-328           LOCK – Ignition (with two keys)        1  22-8000 to 22-9522 inclusive                      NM!
              -27   12980-00      BOX ASSEMBLY – Glove compartment           1  22-1 to 22-806 inclusive                          NM!
              -28   13436-00   C  BEADING – Top of instrument panel (brown)  1                                                    NM!
                    13436-02      BEADING – Top of instrument panel (green)  1  22-807 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
              -29   -471-060      KNOB – Black, parking brake                1  22-2378, 22-2425 to 22-5138 inclusive and 22-5140 to   3.7
                                                                                  22-5602 inclusive
                    471-062       HANDLE – Tee, parking brake OR             1  22-5139, 22-5603 and up                           NM!
                    471-080       KNOB – Chrome, parking brake               1  22-8000 and up                                    NM!

                                  A – Used on PA-22 with serial numbers 22-907, 22-908, 22-909, 22-911
                                    and up.
                                  B – Used on PA-22 with serial numbers 22-907, 22-908, 22-909, 22-911
                                    to 22-7642 inclusive.
                                  C – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  D – Used on ignition switch No. 756-115.





































                                                             67
