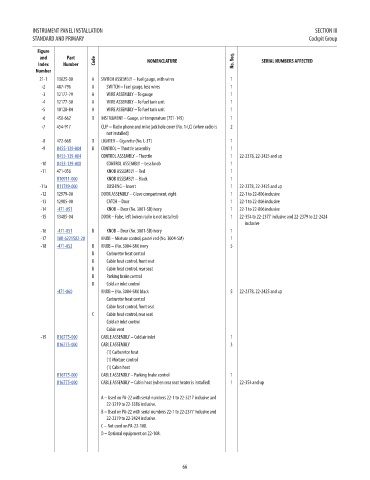

INSTRUMENT PANEL INSTALLATION SECTION III
STANDARD AND PRIMARY Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
21-1 13025-00 A SWITCH ASSEMBLY – Fuel gauge, with wires 1 NM!
-2 487-796 A SWITCH – Fuel gauge, less wires 1 NM!
-3 12177-79 A WIRE ASSEMBLY – To gauge 1 NM!
-4 12177-30 A WIRE ASSEMBLY – To fuel tank unit 1 NM!
-5 10128-84 A WIRE ASSEMBLY – To fuel tank unit 1 NM!
-6 450-662 D INSTRUMENT – Gauge, air temperature (751-145) 1 NM!
-7 454-917 CLIP – Radio phone and mike jack hole cover (No. 1-LC) (when radio is 2 NM!
not installed)
-8 472-668 D LIGHTER – Cigarette (No. L-37) 1 NM!
-9 U455-139-004 B CONTROL – Throttle assembly 1 459.53
U455-139-004 CONTROL ASSEMBLY – Throttle 1 22-2378, 22-2425 and up 459.53
-10 U455-139-000 CONTROL ASSEMBLY – Less knob 1 423.48
-11 471-056 KNOB ASSEMBLY – Red 1 NM!
U10911-000 KNOB ASSEMBLY – Black 1 12.44
-11a U11789-000 BUSHING – Insert 1 22-2378, 22-2425 and up 17.62
-12 12979-00 DOOR ASSEMBLY – Glove compartment, right 1 22-1 to 22-806 inclusive NM!
-13 12985-00 CATCH – Door 1 22-1 to 22-806 inclusive NM!
-14 -471-051 KNOB – Door (No. 3001-SD) ivory 1 22-1 to 22-806 inclusive 2.19
-15 13485-04 DOOR – False, left (when radio is not installed) 1 22-354 to 22-2377 inclusive and 22-2379 to 22-2424 NM!
inclusive
-16 -471-051 B KNOB – Door (No. 3001-SD) ivory 1 2.19
-17 108-6221502-20 KNOB – Mixture control, pastel red (No. 3004-SM) 1 6.98
-18 -471-052 B KNOB – (No. 3004-SM) ivory 5 5.39
B Carburetor heat control
B Cabin heat control, front seat
B Cabin heat control, rear seat
B Parking brake control
B Cold air inlet control
-471-060 KNOB – (No. 3004-SM) black 5 22-2378, 22-2425 and up 3.7
Carburetor heat control
Cabin heat control, front seat
C Cabin heat control, rear seat
Cold air inlet control
Cabin vent
-19 U16775-000 CABLE ASSEMBLY – Cold air inlet 1 77.86
U16775-000 CABLE ASSEMBLY 3 77.86
(1) Carburetor heat
(1) Mixture control
(1) Cabin heat
U16775-000 CABLE ASSEMBLY – Parking brake control 1 77.86
U16775-000 CABLE ASSEMBLY – Cabin heat (when rear seat heater is installed) 1 22-354 and up 77.86

A – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
22-3219 to 22-3386 inclusive.
B – Used on PA-22 with serial numbers 22-1 to 22-2377 inclusive and
22-2379 to 22-2424 inclusive.
C – Not used on PA-22-108.
D – Optional equipment on 22-108.
