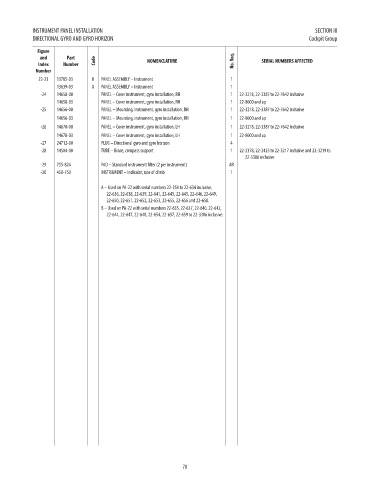

INSTRUMENT PANEL INSTALLATION SECTION III
DIRECTIONAL GYRO AND GYRO HORIZON Cockpit Group

Figure
and Part
Index Number Code NOMENCLATURE No. Req. SERIAL NUMBERS AFFECTED PRICE
Number
22-23 13785-03 B PANEL ASSEMBLY – Instrument 1 NM!
13639-03 A PANEL ASSEMBLY – Instrument 1 NM!
-24 14658-00 PANEL – Cover instrument, gyro installation, RH 1 22-3218, 22-3387 to 22-7642 inclusive NM!
14658-03 PANEL – Cover instrument, gyro installation, RH 1 22-8000 and up NM!
-25 14656-00 PANEL – Mounting, instrument, gyro installation, RH 1 22-3218, 22-3387 to 22-7642 inclusive NM!
14656-03 PANEL – Mounting, instrument, gyro installation, RH 1 22-8000 and up NM!
-26 14678-00 PANEL – Cover instrument, gyro installation, LH 1 22-3218, 22-3387 to 22-7642 inclusive NM!
14678-03 PANEL – Cover instrument, gyro installation, LH 1 22-8000 and up NM!
-27 24712-00 PLUG – Directional gyro and gyro horizon 4 NM!
-28 14504-00 TUBE – Brace, compass support 1 22-2378, 22-2425 to 22-3217 inclusive and 22-3219 to NM!
22-3386 inclusive
-29 755-824 PAD – Standard instrument filter (2 per instrument) AR NM!
-30 450-750 INSTRUMENT – Indicator, rate of climb 1 NM!

A – Used on PA-22 with serial numbers 22-354 to 22-634 inclusive,
22-636, 22-638, 22-639, 22-641, 22-643, 22-645, 22-646, 22-649,
22-650, 22-651, 22-652, 22-653, 22-655, 22-656 and 22-658.
B – Used on PA-22 with serial numbers 22-635, 22-637, 22-640, 22-642,
22-644, 22-647, 22-648, 22-654, 22-657, 22-659 to 22-3386 inclusive.

70
