P. 87

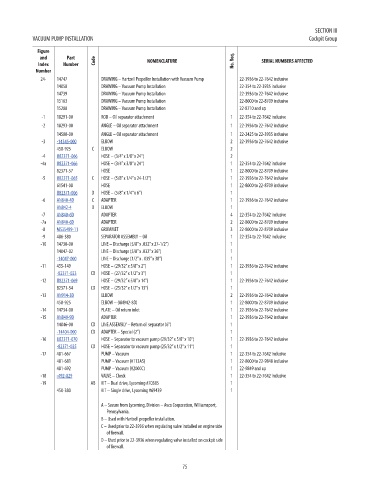

SECTION III
            VACUUM PUMP INSTALLATION                                                                   Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              24-   14747         DRAWING – Hartzell Propeller Installation with Vacuum Pump  22-3936 to 22-7642 inclusive        NM!
                    14058         DRAWING – Vacuum Pump Installation            22-354 to 22-3935 inclusive                       NM!
                    14739         DRAWING – Vacuum Pump Installation            22-3936 to 22-7642 inclusive                      NM!
                    15163         DRAWING – Vacuum Pump Installation            22-8000 to 22-8709 inclusive                      NM!
                    15208         DRAWING – Vacuum Pump Installation            22-8710 and up                                    NM!
               -1   18291-00      ROD – Oil separator attachment             1  22-354 to 22-7642 inclusive                       NM!
               -2   18293-00      ANGLE – Oil separator attachment           1  22-3936 to 22-7642 inclusive                      NM!
                    14500-00      ANGLE – Oil separator attachment           1  22-2425 to 22-3935 inclusive                      NM!
               -3   -14345-000    ELBOW                                      2  22-3936 to 22-7642 inclusive                      27.19
                    458-925    C  ELBOW                                      2                                                    NM!
               -4   U82371-066    HOSE – (3/4” x 3/8” x 24”)                 2                                                    80.74
              -4a   U82371-066    HOSE – (3/4” x 3/8” x 24”)                 1  22-354 to 22-7642 inclusive                       80.74
                    82371-57      HOSE                                       1  22-8000 to 22-8709 inclusive                      NM!
               -5   U82371-065  C  HOSE – (5/8” x 1/4” x 24-1/2”)            1  22-3936 to 22-7642 inclusive                      77.89
                    61541-08      HOSE                                       1  22-8000 to 22-8709 inclusive                      NM!
                    U82371-006  D  HOSE – (5/8” x 1/4” x 6”)                 1                                                    29.79
               -6   AN840-4D   C  ADAPTER                                    1  22-3936 to 22-7642 inclusive                      7.5
                    AN842-4    D  ELBOW                                      1                                                    52
               -7   AN840-6D      ADAPTER                                    4  22-354 to 22-7642 inclusive                       11.96
              -7a   AN840-6D      ADAPTER                                    2  22-8000 to 22-8709 inclusive                      11.96
               -8   MS35489-11    GROMMET                                    3  22-8000 to 22-8709 inclusive                      0.6
               -9   486-380       SEPARATOR ASSEMBLY – Oil                   1  22-354 to 22-7642 inclusive                       NM!
              -10   14730-00      LINE – Discharge (5/8” x .032” x 27-1/2”)  1                                                    NM!
                    14047-02      LINE – Discharge (5/8” x .032” x 36”)      1                                                    NM!
                    -14047-000    LINE – Discharge (1/2” x . 035” x 38”)     1                                                    37.89
              -11   455-149       HOSE – (29/32” x 5/8” x 2”)                1  22-3936 to 22-7642 inclusive                      NM!
                    -82371-023  CD  HOSE – (27/32” x 1/2” x 3”)              1                                                    37.37
              -12   U82371-069    HOSE – (29/32” x 5/8” x 14”)               1  22-3936 to 22-7642 inclusive                      25.27
                    82371-54   CD  HOSE – (25/32” x 1/2” x 13”)              1                                                    NM!
              -13   AN914-3D      ELBOW                                      2  22-3936 to 22-7642 inclusive                      43.32
                    458-925       ELBOW – (AN942-8D)                         1  22-8000 to 22-8709 inclusive                      NM!
              -14   14734-00      PLATE – Oil return inlet                   1  22-3936 to 22-7642 inclusive                      NM!
              -15   AN840-9D      ADAPTER                                    1  22-3936 to 22-7642 inclusive                      28.24
                    14046-00   CD  LINE ASSEMBLY – Return oil separator (6”)  1                                                   NM!
                    -14404-000  CD  ADAPTER – Special (2”)                   1                                                    9.07
              -16   U82371-070    HOSE – Separator to vacuum pump (29/32” x 5/8” x 10”)  1  22-3936 to 22-7642 inclusive          19.48
                    -82371-025  CD  HOSE – Separator to vacuum pump (25/32” x 1/2” x 11”)  1                                      54.17
              -17   481-667       PUMP – Vacuum                              1  22-354 to 22-7642 inclusive                       NM!
                    481-681       PUMP – Vacuum (#113A5)                     1  22-8000 to 22-9848 inclusive                      NM!
                    481-692       PUMP – Vacuum (#200CC)                     1  22-9849 and up                                    NM!
              -18   -492-029      VALVE – Check                              1  22-354 to 22-7642 inclusive                       104.54
              -19              AB  KIT – Dual drive, Lycoming #70385         1                                                    X
                    450-380       KIT – Single drive, Lycoming #69439        1                                                    NM!

                                  A – Secure from Lycoming, Division – Avco Corporation, Williamsport,
                                    Pennsylvania.
                                  B – Used with Hartzell propeller installation.
                                  C – Used prior to 22-3936 when regulating valve installed on engine side
                                    of firewall.
                                  D – Used prior to 22-3936 when regulating valve installed on cockpit side
                                    of firewall.



                                                             75
