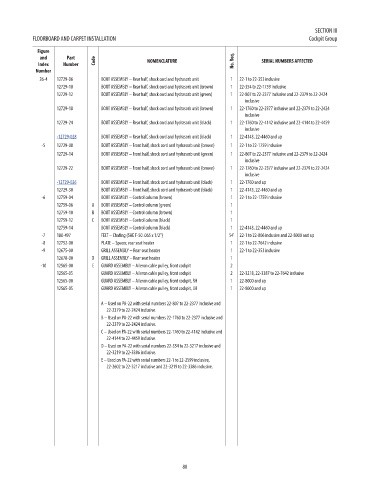

P. 92

SECTION III
            FLOORBOARD AND CARPET INSTALLATION                                                         Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              26-4  12729-06      BOOT ASSEMBLY – Rear half, shock cord and hydrasorb unit  1  22-1 to 22-353 inclusive           NM!
                    12729-10      BOOT ASSEMBLY – Rear half, shock cord and hydrasorb unit (brown)  1  22-354 to 22-1759 inclusive  NM!
                    12729-12      BOOT ASSEMBLY – Rear half, shock cord and hydrasorb unit (green)  1  22-807 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    12729-18      BOOT ASSEMBLY – Rear half, shock cord and hydrasorb unit (brown)  1  22-1760 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    12729-24      BOOT ASSEMBLY – Rear half, shock cord and hydrasorb unit (black)  1  22-1760 to 22-4142 inclusive and 22-4144 to 22-4459   NM!
                                                                                  inclusive
                    -12729-028    BOOT ASSEMBLY – Rear half, shock cord and hydrasorb unit (black)  1  22-4143, 22-4460 and up    27.87
               -5   12729-08      BOOT ASSEMBLY – Front half, shock cord and hydrasorb unit (brown)  1  22-1 to 22-1759 inclusive  NM!
                    12729-14      BOOT ASSEMBLY – Front half, shock cord and hydrasorb unit (green)  1  22-807 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    12729-22      BOOT ASSEMBLY – Front half, shock cord and hydrasorb unit (brown)  1  22-1760 to 22-2377 inclusive and 22-2379 to 22-2424   NM!
                                                                                  inclusive
                    -12729-026    BOOT ASSEMBLY – Front half, shock cord and hydrasorb unit (black)  1  22-1760 and up            22
                    12729-30      BOOT ASSEMBLY – Front half, shock cord and hydrasorb unit (black)  1  22-4143, 22-4460 and up   NM!
               -6   12759-04      BOOT ASSEMBLY – Control column (brown)     1  22-1 to 22-1759 inclusive                         NM!
                    12759-06   A  BOOT ASSEMBLY – Control column (green)     1                                                    NM!
                    12759-10   B  BOOT ASSEMBLY – Control column (brown)     1                                                    NM!
                    12759-12   C  BOOT ASSEMBLY – Control column (black)     1                                                    NM!
                    12759-14      BOOT ASSEMBLY – Control column (black)     1  22-4143, 22-4460 and up                           NM!
               -7   180-497       FELT – Chafing (SAE F-50 .065 x 1/2”)      54’ 22-1 to 22-806 inclusive and 22-8000 and up      NM!
               -8   12752-00      PLATE – Spacer, rear seat heater           1  22-1 to 22-7642 inclusive                         NM!
               -9   12675-00      GRILL ASSEMBLY – Rear seat heater          1  22-1 to 22-353 inclusive                          NM!
                    12678-00   D  GRILL ASSEMBLY – Rear seat heater          1                                                    NM!
              -10   12565-00   E  GUARD ASSEMBLY – Aileron cable pulley, front cockpit  2                                         NM!
                    12565-05      GUARD ASSEMBLY – Aileron cable pulley, front cockpit  2  22-3218, 22-3387 to 22-7642 inclusive  NM!
                    12565-00      GUARD ASSEMBLY – Aileron cable pulley, front cockpit, RH  1  22-8000 and up                     NM!
                    12565-05      GUARD ASSEMBLY – Aileron cable pulley, front cockpit, LH  1  22-8000 and up                     NM!

                                  A – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  B – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  C – Used on PA-22 with serial numbers 22-1760 to 22-4142 inclusive and
                                    22-4144 to 22-4459 inclusive.
                                  D – Used on PA-22 with serial numbers 22-354 to 22-3217 inclusive and
                                    22-3219 to 22-3386 inclusive.
                                  E – Used on PA-22 with serial numbers 22-1 to 22-2599 inclusive,
                                    22-2602 to 22-3217 inclusive and 22-3219 to 22-3386 inclusive.
