P. 93

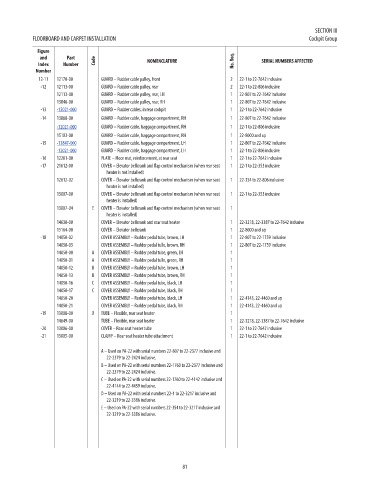

SECTION III
            FLOORBOARD AND CARPET INSTALLATION                                                         Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              12-11  12170-00     GUARD – Rudder cable pulley, front         2  22-1 to 22-7642 inclusive                         NM!
              -12   12113-00      GUARD – Rudder cable pulley, rear          2  22-1 to 22-806 inclusive                          NM!
                    12113-00      GUARD – Rudder cable pulley, rear, LH      1  22-807 to 22-7642 inclusive                       NM!
                    13846-00      GUARD – Rudder cable pulley, rear, RH      1  22-807 to 22-7642 inclusive                       NM!
              -13   -12021-000    GUARD – Rudder cables, in rear cockpit     1  22-1 to 22-7642 inclusive                         35.02
              -14   13868-00      GUARD – Rudder cable, baggage compartment, RH  1  22-807 to 22-7642 inclusive                   NM!
                    -12021-000    GUARD – Rudder cable, baggage compartment, RH  1  22-1 to 22-806 inclusive                      35.02
                    15103-00      GUARD – Rudder cable, baggage compartment, RH  1  22-8000 and up                                NM!
              -15   -13847-000    GUARD – Rudder cable, baggage compartment, LH  1  22-807 to 22-7642 inclusive                   67.03
                    -12021-000    GUARD – Rudder cable, baggage compartment, LH  1  22-1 to 22-806 inclusive                      35.02
              -16   12281-00      PLATE – Floor mat, reinforcement, at rear seat  1  22-1 to 22-7642 inclusive                    NM!
              -17   21612-00      COVER – Elevator bellcrank and flap control mechanism (when rear seat   1  22-1 to 22-353 inclusive  NM!
                                    heater is not installed)
                    12612-02      COVER – Elevator bellcrank and flap control mechanism (when rear seat   1  22-354 to 22-806 inclusive  NM!
                                    heater is not installed)
                    13007-00      COVER – Elevator bellcrank and flap control mechanism (when rear seat   1  22-1 to 22-353 inclusive  NM!
                                    heater is installed)
                    13007-04   E  COVER – Elevator bellcrank and flap control mechanism (when rear seat   1                       NM!
                                    heater is installed)
                    14630-00      COVER – Elevator bellcrank and rear seat heater  1  22-3218, 22-3387 to 22-7642 inclusive       NM!
                    15164-00      COVER – Elevator bellcrank                 1  22-8000 and up                                    NM!
              -18   14050-02      COVER ASSEMBLY – Rudder pedal tube, brown, LH  1  22-807 to 22-1759 inclusive                   NM!
                    14050-03      COVER ASSEMBLY – Rudder pedal tulle, brown, RH  1  22-807 to 22-1759 inclusive                  NM!
                    14050-00   A  COVER ASSEMBLY – Rudder pedal tube, green, LH  1                                                NM!
                    14050-01   A  COVER ASSEMBLY – Rudder pedal tulle, green, RH  1                                               NM!
                    14050-12   B  COVER ASSEMBLY – Rudder pedal tube, brown, LH  1                                                NM!
                    14050-13   B  COVER ASSEMBLY – Rudder pedal tube, brown, RH  1                                                NM!
                    14050-16   C  COVER ASSEMBLY – Rudder pedal tube, black, LH  1                                                NM!
                    14050-17   C  COVER ASSEMBLY – Rudder pedal tube, black, RH  1                                                NM!
                    14050-20      COVER ASSEMBLY – Rudder pedal tube, black, LH  1  22-4143, 22-4460 and up                       NM!
                    14050-21      COVER ASSEMBLY – Rudder pedal tube, black, RH  1  22-4143, 22-4460 and up                       NM!
              -19   13008-00   D  TUBE – Flexible, rear seat heater          1                                                    NM!
                    14649-00      TUBE – Flexible, rear seat heater          1  22-3218, 22-3387 to 22-7642 inclusive             NM!
              -20   13006-00      COVER – Rear seat heater tube              1  22-1 to 22-7642 inclusive                         NM!
              -21   13005-00      CLAMP – Rear seat heater tube attachment   1  22-1 to 22-7642 inclusive                         NM!

                                  A – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  B – Used on PA-22 with serial numbers 22-1760 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  C – Used on PA-22 with serial numbers 22-1760 to 22-4142 inclusive and
                                    22-4144 to 22-4459 inclusive.
                                  D – Used on PA-22 with serial numbers 22-1 to 22-3217 inclusive and
                                    22-3219 to 22-3386 inclusive.
                                  E – Used on PA-22 with serial numbers 22-354 to 22-3217 inclusive and
                                    22-3219 to 22-3386 inclusive.









                                                             81
