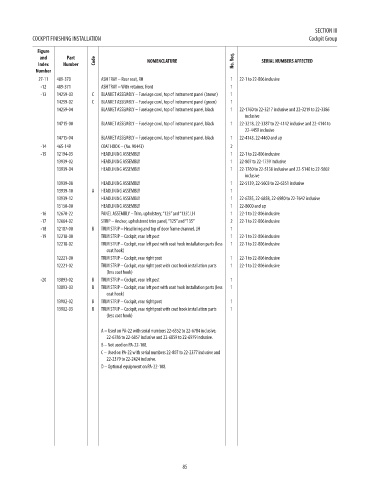

P. 97

SECTION III
            COCKPIT FINISHING INSTALLATION                                                             Cockpit Group

             Figure
              and      Part
              Index   Number    Code              NOMENCLATURE                No. Req.  SERIAL NUMBERS AFFECTED                   PRICE
             Number
              27-11  489-370      ASH TRAY – Rear seat, RH                   1  22-1 to 22-806 inclusive                          NM!
              -12   489-371       ASH TRAY – With retainer, front            1                                                    NM!
              -13   14259-03   C  BLANKET ASSEMBLY – Fuselage cowl, top of instrument panel (brown)  1                            NM!
                    14259-02   C  BLANKET ASSEMBLY – Fuselage cowl, top of instrument panel (green)  1                            NM!
                    14259-04      BLANKET ASSEMBLY – Fuselage cowl, top of instrument panel, black  1  22-1760 to 22-3217 inclusive and 22-3219 to 22-3386   NM!
                                                                                  inclusive
                    14715-00      BLANKET ASSEMBLY – Fuselage cowl, top of instrument panel, black  1  22-3218, 22-3387 to 22-4142 inclusive and 22-4144 to   NM!
                                                                                  22-4459 inclusive
                    14715-04      BLANKET ASSEMBLY – Fuselage cowl, top of instrument panel, black  1  22-4143, 22-4460 and up    NM!
              -14   465-149       COAT HOOK – (No. 98443)                    2                                                    NM!
              -15   12194-03      HEADLINING ASSEMBLY                        1  22-1 to 22-806 inclusive                          NM!
                    13939-02      HEADLINING ASSEMBLY                        1  22-807 to 22-1759 inclusive                       NM!
                    13939-04      HEADLINING ASSEMBLY                        1  22-1760 to 22-5138 inclusive and 22-5140 to 22-5602   NM!
                                                                                  inclusive
                    13939-08      HEADLINING ASSEMBLY                        1  22-5139, 22-5603 to 22-6351 inclusive             NM!
                    13939-10   A  HEADLINING ASSEMBLY                        1                                                    NM!
                    13939-12      HEADLINING ASSEMBLY                        1  22-6785, 22-6858, 22-6980 to 22-7642 inclusive    NM!
                    15150-00      HEADLINING ASSEMBLY                        1  22-8000 and up                                    NM!
              -16   12670-22      PANEL ASSEMBLY – Trim, upholstery, “125” and “135”, LH  1  22-1 to 22-806 inclusive             NM!
              -17   12664-02      STRIP – Anchor, upholstered trim panel, “125” and “135”  2  22-1 to 22-806 inclusive            NM!
              -18   12187-00   B  TRIM STRIP – Headlining and top of door frame channel, LH  1                                    NM!
              -19   12218-00      TRIM STRIP – Cockpit, rear left post       1  22-1 to 22-806 inclusive                          NM!
                    12218-02      TRIM STRIP – Cockpit, rear left post with coat hook installation parts (less   1  22-1 to 22-806 inclusive  NM!
                                    coat hook)
                    12221-00      TRIM STRIP – Cockpit, rear right post      1  22-1 to 22-806 inclusive                          NM!
                    12221-02      TRIM STRIP – Cockpit, rear right post with coat hook installation parts   1  22-1 to 22-806 inclusive  NM!
                                    (less coat hook)
              -20   13893-02   B  TRIM STRIP – Cockpit, rear left post       1                                                    NM!
                    13893-03   B  TRIM STRIP – Cockpit, rear left post with coat hook installation parts (less   1                NM!
                                    coat hook)
                    13902-02   B  TRIM STRIP – Cockpit, rear right post      1                                                    NM!
                    13902-03   B  TRIM STRIP – Cockpit, rear right post with coat hook installation parts   1                     NM!
                                    (less coat hook)


                                  A – Used on PA-22 with serial numbers 22-6352 to 22-6784 inclusive,
                                    22-6786 to 22-6857 inclusive and 22-6859 to 22-6979 inclusive.
                                  B – Not used on PA-22-108.
                                  C – Used on PA-22 with serial numbers 22-807 to 22-2377 inclusive and
                                    22-2379 to 22-2424 inclusive.
                                  D – Optional equipment on PA-22-108.



















                                                             85
